Components And Components Location: Components

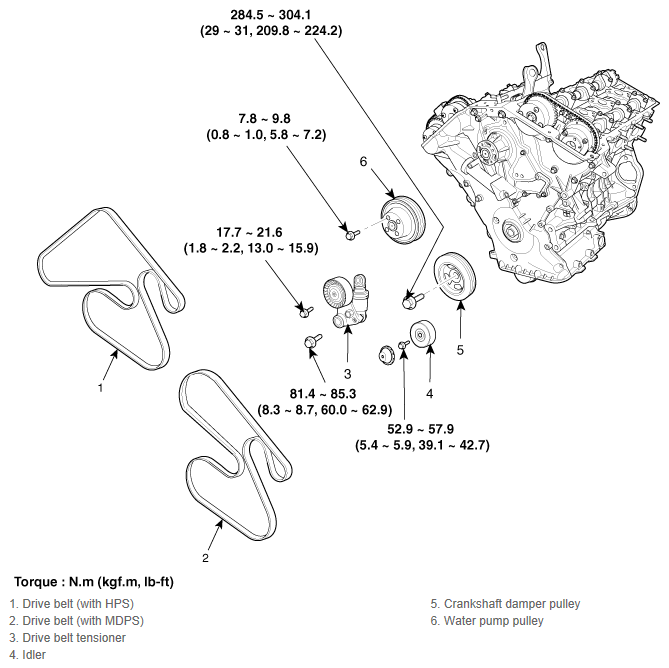

Fig 1: Timing System Components Location With Torque Specification (Belt)

Courtesy of KIA MOTORS AMERICA, INC.

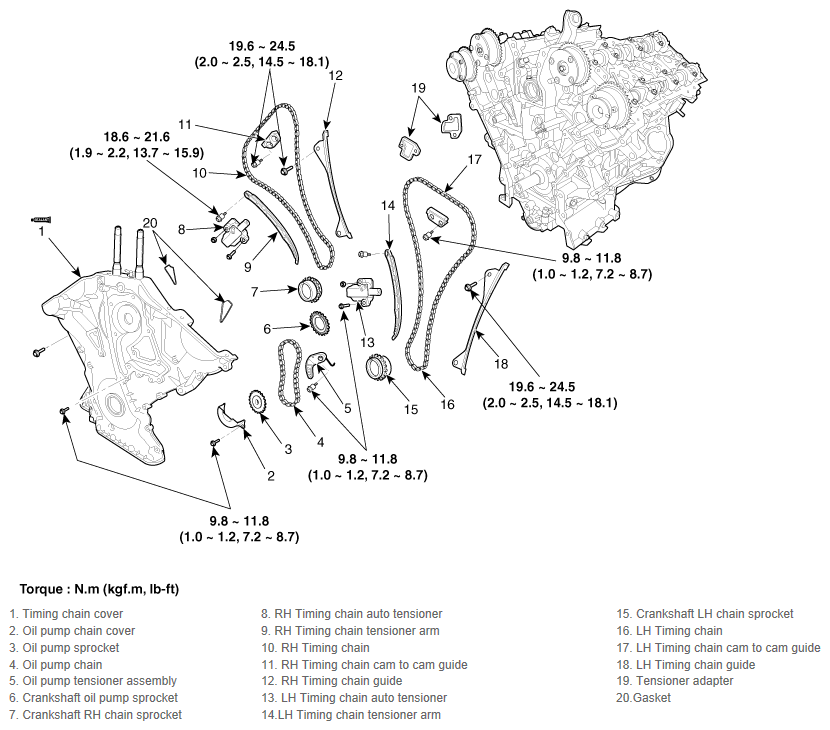

Fig 2: Timing System Components Location With Torque Specification (Chain)

Courtesy of KIA MOTORS AMERICA, INC.
