Components And Components Location: Components

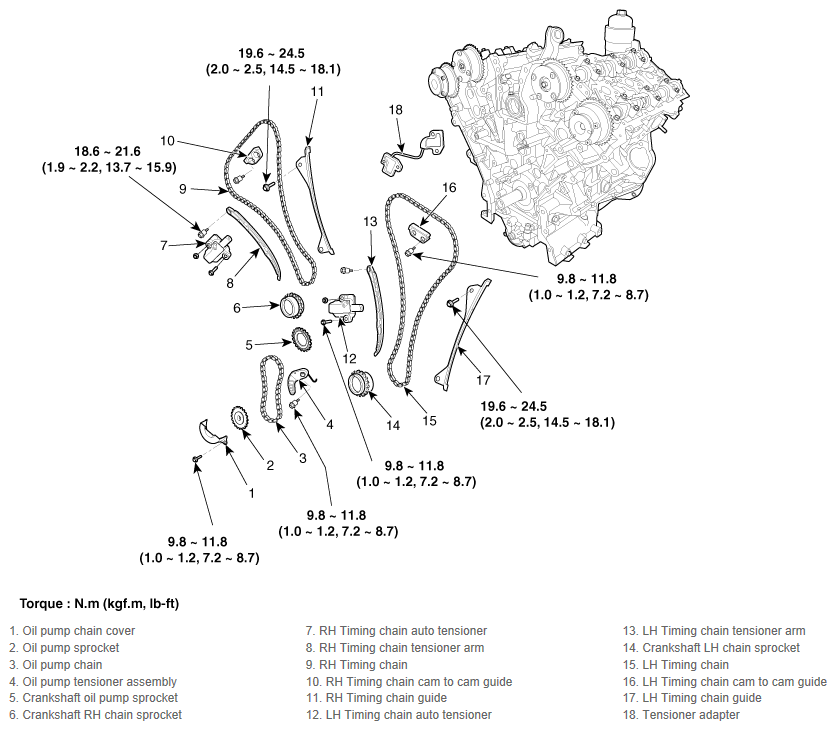

Fig 1: Timing Chain Components Location With Torque Specification

G12273439

Courtesy of KIA MOTORS AMERICA, INC.
