Home >> Kia >> 2017 >> Sedona EX >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle System >> Components And Components Location >> Components

Components And Components Location: Components

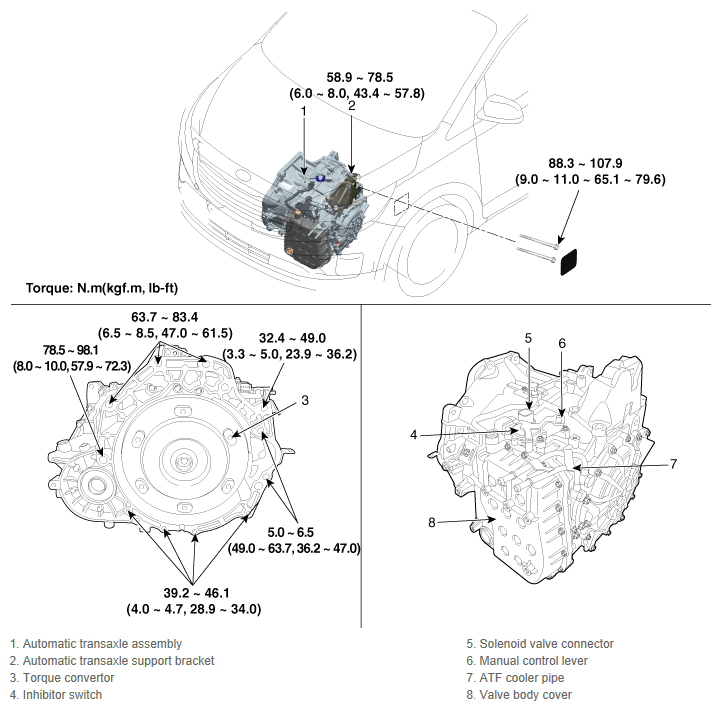

Fig 1: Automatic Transaxle System Components Location With Torque Specification

G12273669

Courtesy of KIA MOTORS AMERICA, INC.
