Schematic Diagrams

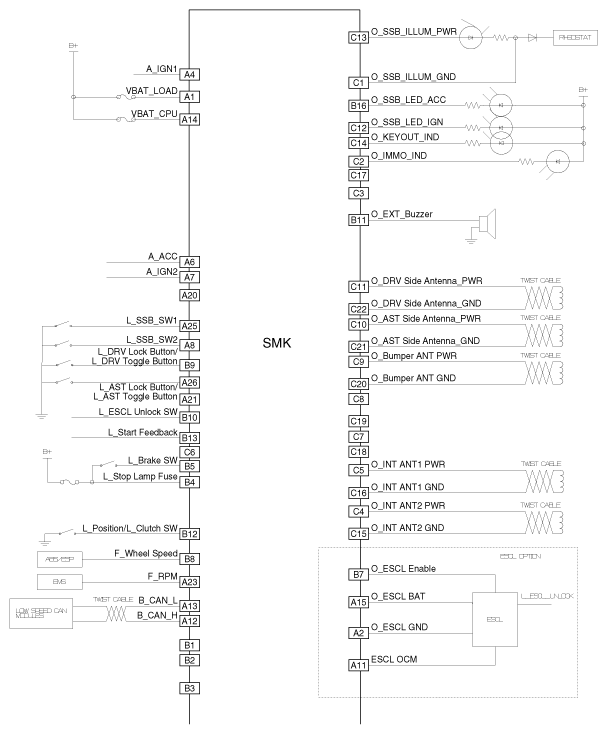

Fig 1: Smart Key Unit Schematic Diagram (1 Of 2)

G12176921

Courtesy of KIA MOTORS AMERICA, INC.

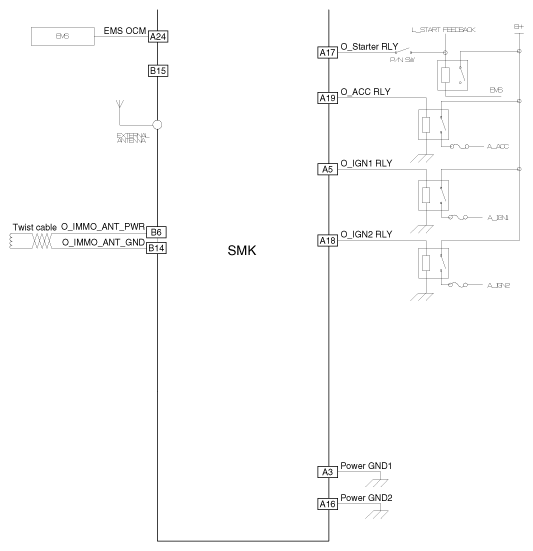

Fig 2: Smart Key Unit Schematic Diagram (2 Of 2)

G12176922

Courtesy of KIA MOTORS AMERICA, INC.
