Components Location

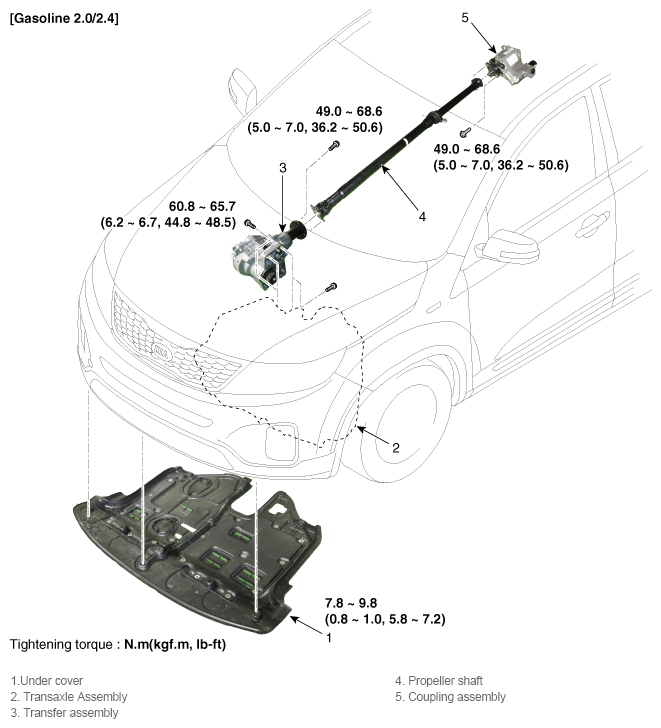

Fig 1: Locating Front Wheel Transfer Assembly Components With Torque Specifications (Gasoline 2.0/2.4)
G12171772Courtesy of KIA MOTORS AMERICA, INC.

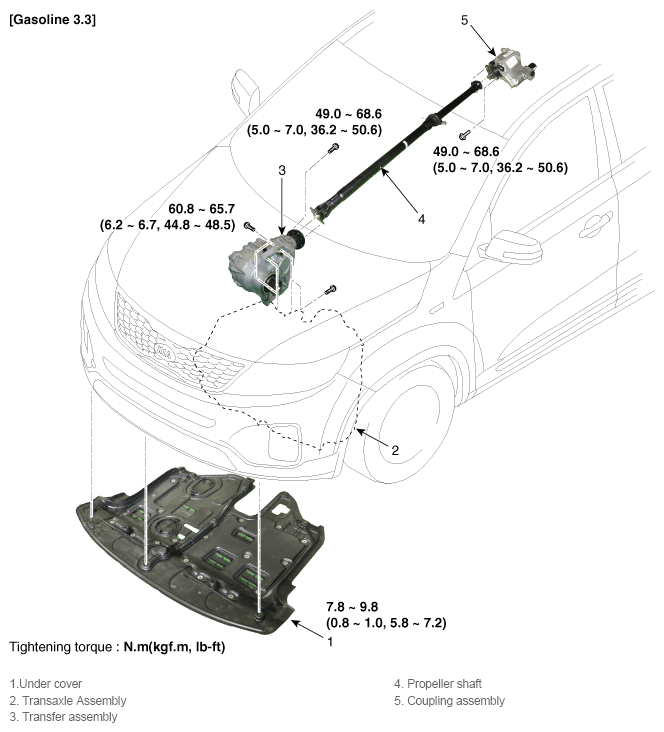

Fig 2: Locating Front Wheel Transfer Assembly Components With Torque Specifications (Gasoline 3.3)
G12171773Courtesy of KIA MOTORS AMERICA, INC.
