Home >> Kia >> 2017 >> Soul Base, Automatic Trans >> Repair and Diagnosis (Single Page) >> Transmission >> Automatic Trans >> Engine And Transmission Assembly - 1.6L >> Engine Mounting >> Components And Components Location >> Components

Components And Components Location: Components

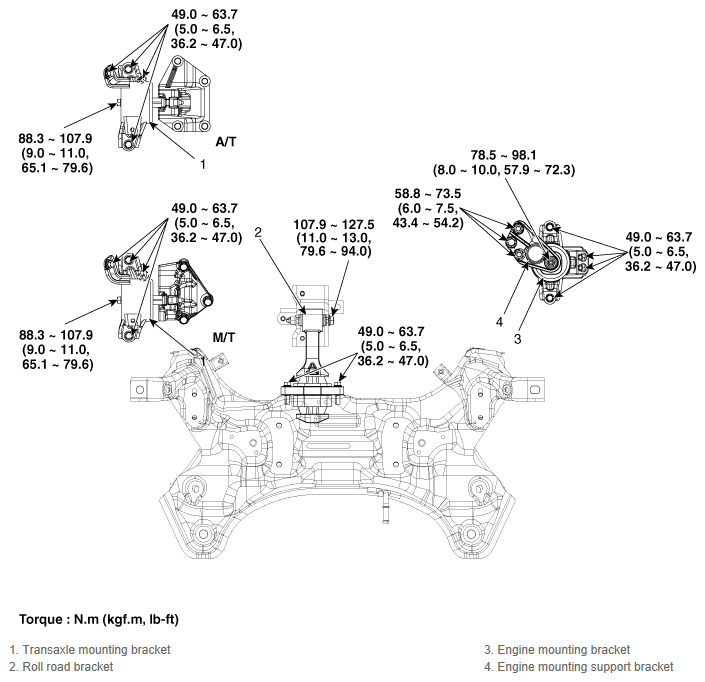

Fig 1: Engine Mounting Components Location With Torque Specification
G12226948Courtesy of KIA MOTORS AMERICA, INC.
