Home >> Kia >> 2017 >> Soul Base, Automatic Trans >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Timing System - 1.6L >> Components And Components Location >> Components

Components And Components Location: Components

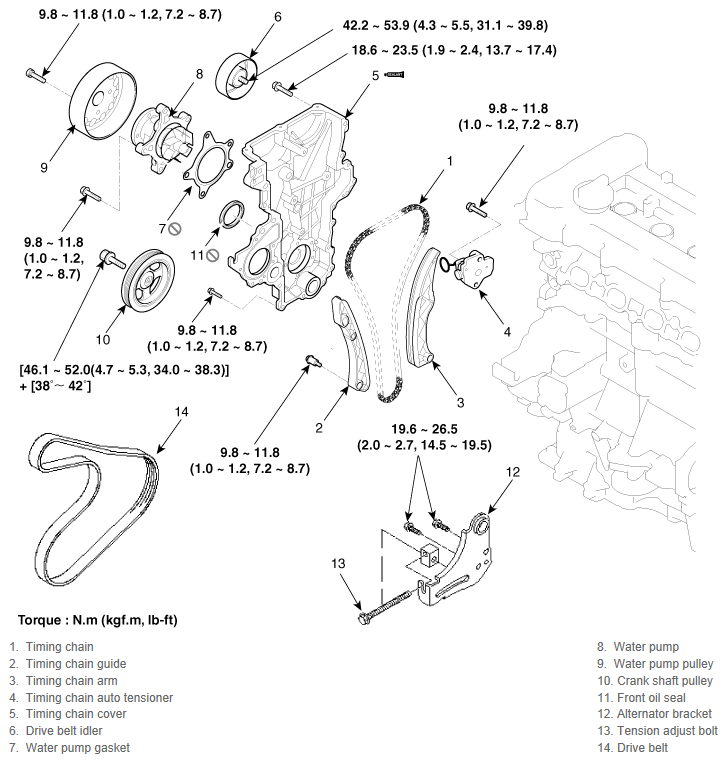

Fig 1: Timing System Components Location With Torque Specification

G12227009

Courtesy of KIA MOTORS AMERICA, INC.
