Home >> Kia >> 2017 >> Soul Base, Automatic Trans >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Timing System - 1.6L >> Timing Chain Cover >> Components And Components Location >> Components

Components And Components Location: Components

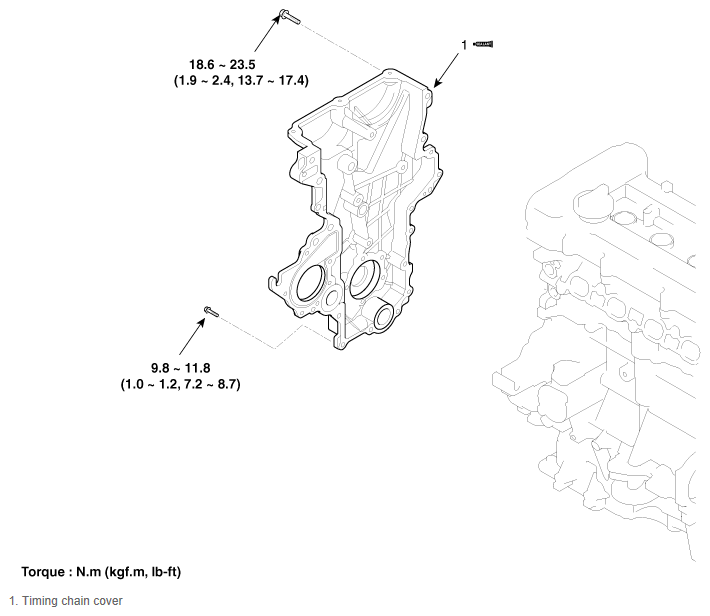

Fig 1: Timing Chain Cover Components Location With Torque Specification

G12227037

Courtesy of KIA MOTORS AMERICA, INC.
