Home >> Kia >> 2017 >> Soul Base, Automatic Trans >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle Control System - 1.6L >> Shift Lever >> Components And Components Location >> Components

Components And Components Location: Components

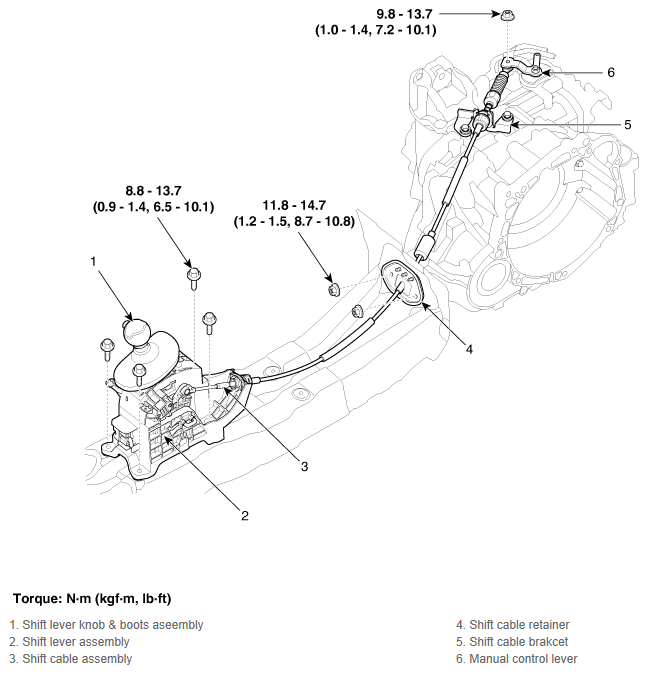

Fig 1: Shift Lever Components Location With Torque Specification

G12227698

Courtesy of KIA MOTORS AMERICA, INC.
