Smart Key Status Check

  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "SMK STATUS INFO".

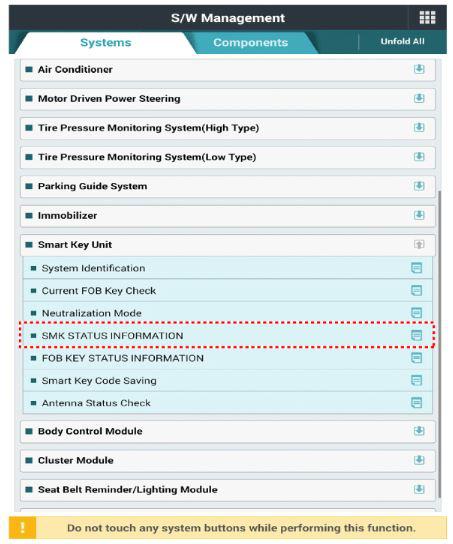

Fig 1: Screen Display - Select SMK Status Information
G00581117Courtesy of KIA MOTORS AMERICA, INC.

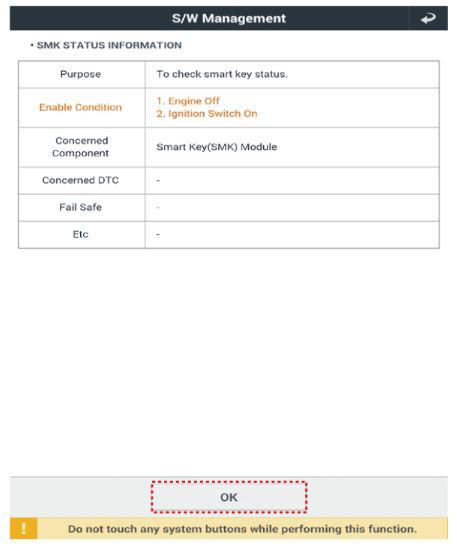

Fig 2: Screen Display - SMK Status Information
G00581118Courtesy of KIA MOTORS AMERICA, INC.

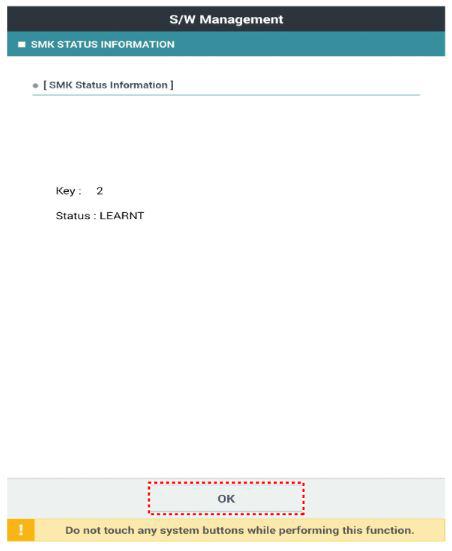

Fig 3: Screen Display - SMK Status Information
G00581119Courtesy of KIA MOTORS AMERICA, INC.
