Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad center lower panel.

    (Refer to Body - "CRASH PAD CENTER PANEL ")

  3. Remove the start/stop button assembly (A) after loosening the screws.

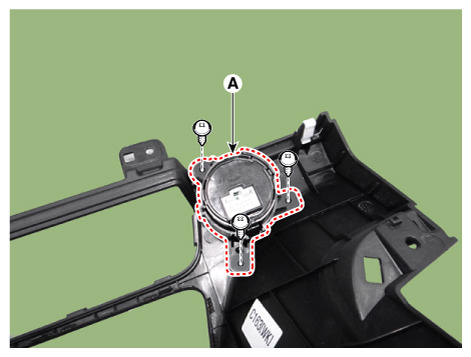

    Fig 1: Locating Start/Stop Button Assembly With Screws
    G12298354Courtesy of KIA MOTORS AMERICA, INC.
