TCM Adaptive Values Learning

• TCM adaptive values learning: When shift shock occurs or parts related with the transaxle are replaced, TCM learning should be performed.
• In the following case, TCM learning is required.
  • Automatic transaxle assembly replacement
  • TCM upgrade or replacement

TCM adaptive values learning procedure: Repeat the above procedure least three times as displayed in the illustration below.

• Static relearn (condition: ATF temperature 35 - 95°C (95 - 203°F)

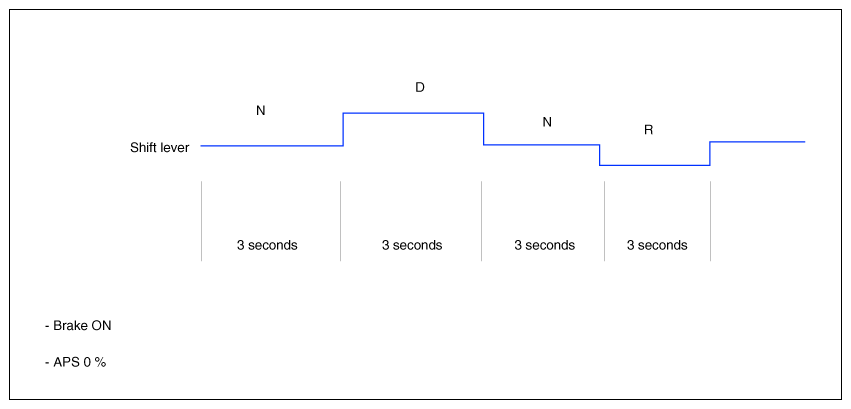

  Fig 1: Shift Lever Timing Pattern

  Courtesy of KIA MOTORS AMERICA, INC.
• Driving relearn

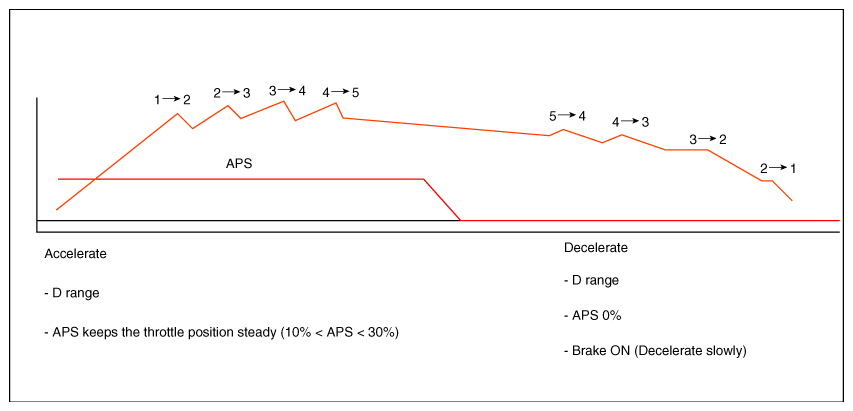

  Fig 2: APS Driving Condition

  Courtesy of KIA MOTORS AMERICA, INC.
