Smart Key Status Check

  1. Connect the cable of KDS to the Data Link Connector in Driver Side Crash Pad Lower Panel.
  2. After IG ON, select the "SMK STATUS INFO".

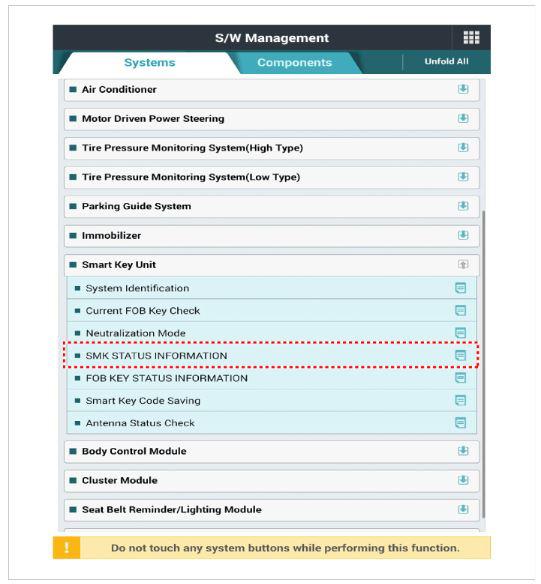

Fig 1: Scantool Display - SMK Status Information (1 Of 3)
G00580013Courtesy of KIA MOTORS AMERICA, INC.

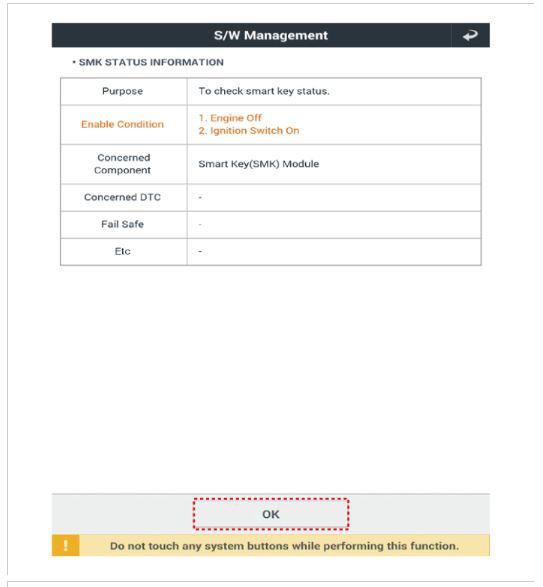

Fig 2: Scantool Display - SMK Status Information (2 Of 3)
G00580014Courtesy of KIA MOTORS AMERICA, INC.

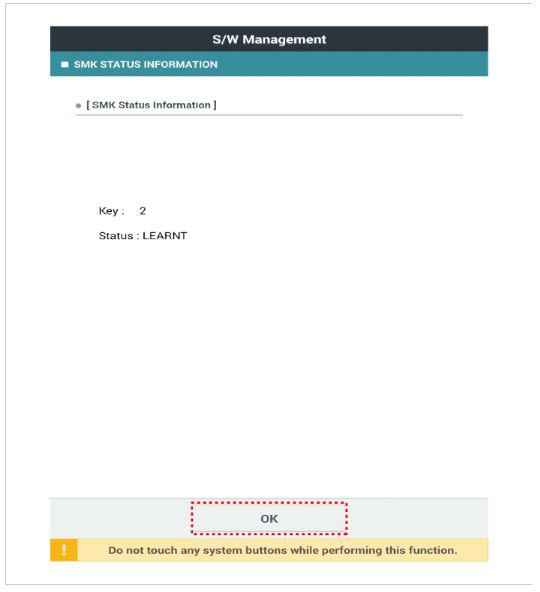

Fig 3: Scantool Display - SMK Status Information (3 Of 3)
G00580015Courtesy of KIA MOTORS AMERICA, INC.
