Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the steering wheel assembly.
(Refer to Steering System - "STEERING WHEEL ")

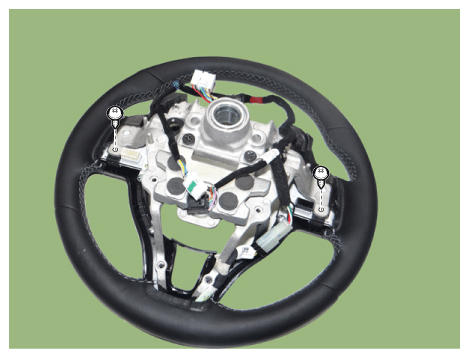

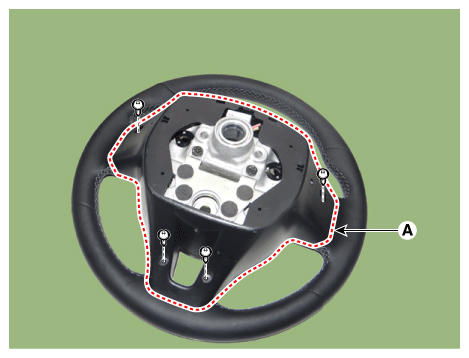

Remove the steering back cover (A) after loosening the mounting screws.

Fig 1: Removing Steering Back Cover Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Locating Steering Back Cover
Courtesy of KIA MOTORS AMERICA, INC.

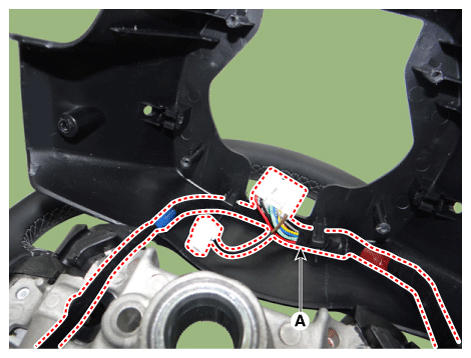

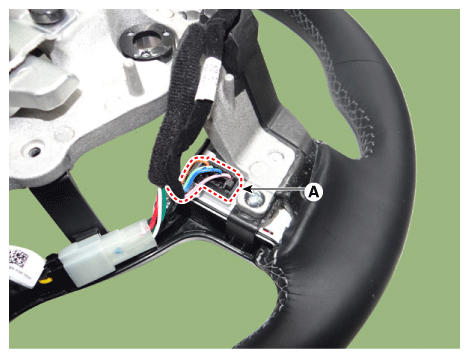

Remove the wiring connector (A) from the steering back cover.

Fig 3: Locating Wiring Connector
Courtesy of KIA MOTORS AMERICA, INC.

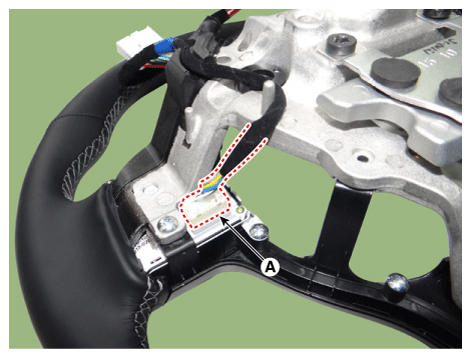

Disconnect the steering wheel remote control connector (A).
[LH]

Fig 4: Locating Steering Wheel Remote Control Connector (LH)
Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Fig 5: Locating Steering Wheel Remote Control Connector (RH)
Courtesy of KIA MOTORS AMERICA, INC.

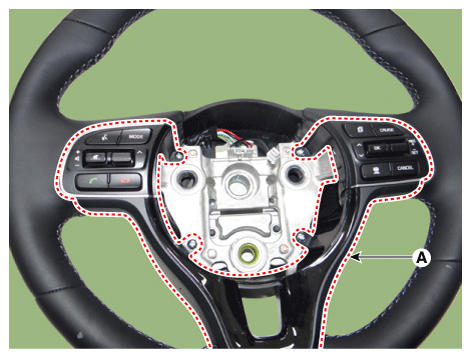

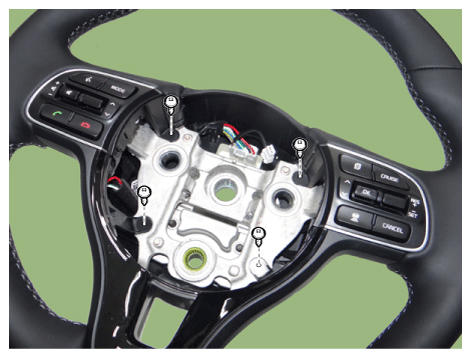

Remove the steering wheel remote control assembly (A) after loosening the mounting screws.

Fig 6: Removing Steering Wheel Remote Control Assembly Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.

Fig 7: Locating Steering Wheel Remote Control Assembly
Courtesy of KIA MOTORS AMERICA, INC.

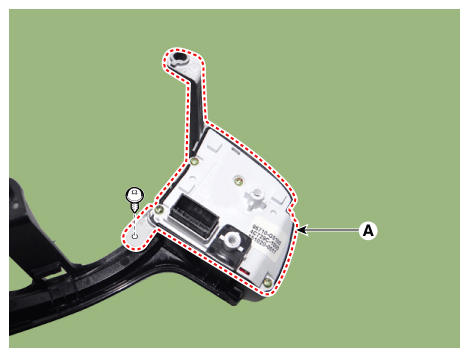

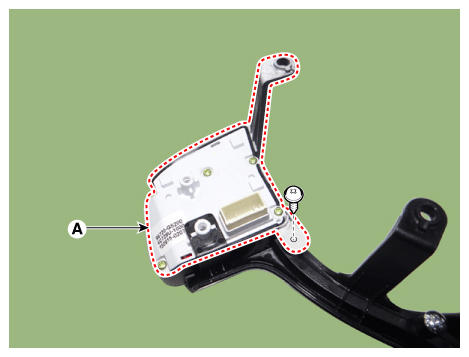

Remove the steering wheel remote control (A) after loosening the mounting screws.

[LH]

Fig 8: Removing Steering Wheel Remote Control Mounting Screws (LH)

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Fig 9: Removing Steering Wheel Remote Control Mounting Screws (RH)

Courtesy of KIA MOTORS AMERICA, INC.
