Camshaft Position Sensor (CMPS): Troubleshooting: Waveform

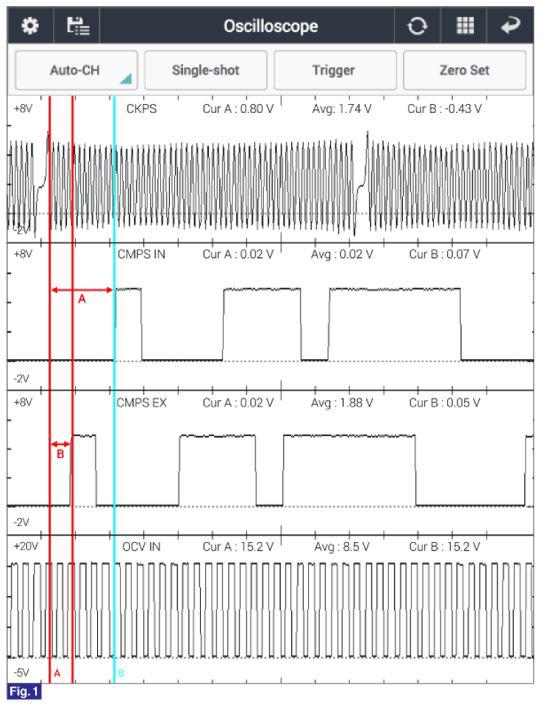

Fig 1: Screen Display - Camshaft Position Sensor Signal Waveform

G00580887

Courtesy of KIA MOTORS AMERICA, INC.
