Home >> Kia >> 2018 >> Niro Plug-In Hybrid EX >> Repair and Diagnosis >> Electrical >> Starter >> Button Engine Start System (PHEV) >> Start-Stop Button >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

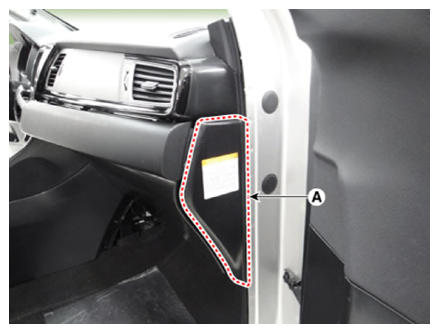

  2. Remove the crash pad side cover [RH] (A).
    G12698058Courtesy of KIA MOTORS AMERICA, INC.

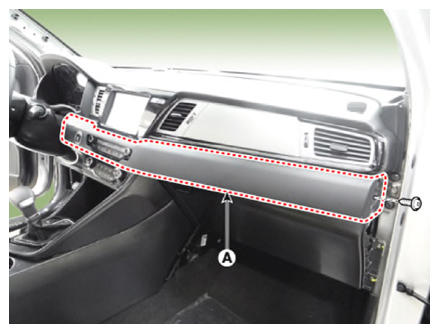

  3. Remove the crash pad plate [RH] (A) after loosening the mounting screws.
    G12698059Courtesy of KIA MOTORS AMERICA, INC.

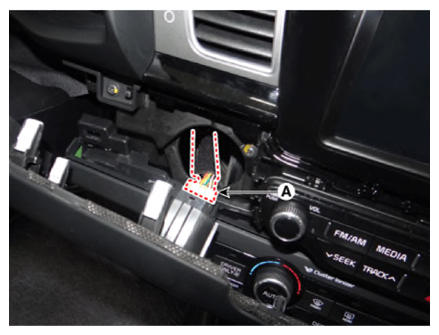

  4. Disconnect the start/stop button connector (A).
    G12698060Courtesy of KIA MOTORS AMERICA, INC.

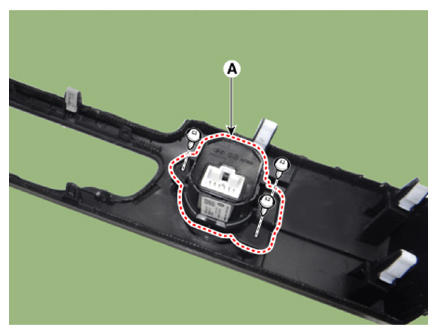

  5. Remove the start/stop button (A) after loosening the mounting screws.
    G12698061Courtesy of KIA MOTORS AMERICA, INC.
