Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - " AIR CLEANER  ")

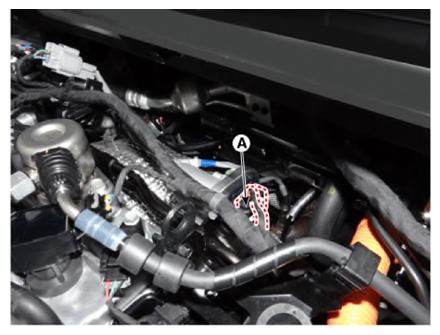

  3. Disconnect the EEGR valve connector (A).
    G12696209Courtesy of KIA MOTORS AMERICA, INC.

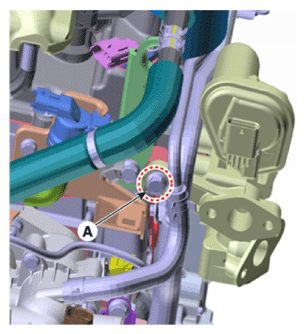

  4. EGR cooler pipe.

    (Refer to Engine Mechanical System - " EGR COOLER  ")

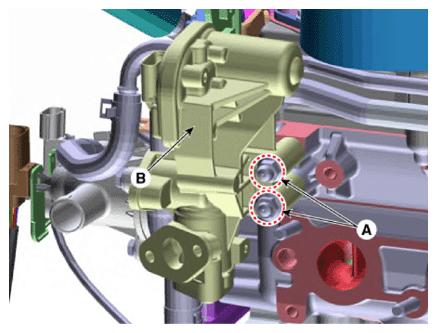

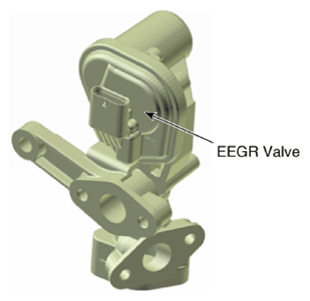

  5. Remove the EEGR valve (B) after loosening the mounting bolts and nuts (A).
    G12696210Courtesy of KIA MOTORS AMERICA, INC.
    G12696211Courtesy of KIA MOTORS AMERICA, INC.
    G12696212Courtesy of KIA MOTORS AMERICA, INC.
