Home >> Kia >> 2018 >> Optima Plug-In Hybrid EX >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Engine Clutch Assembly (PHEV) >> Repair Procedures >> Removal >> Notes

Repair Procedures: Removal: Notes

NOTE: If working with Diagnostic Trouble Code (DTC) P1744 (engine clutch malfunction) requiring replacement of drive motor is indicated, replace motor and transaxle at as a complete unit.
  1. Remove the automatic transaxle.

    (Refer to Automatic Transaxle System - " AUTOMATIC TRANSAXLE  ")

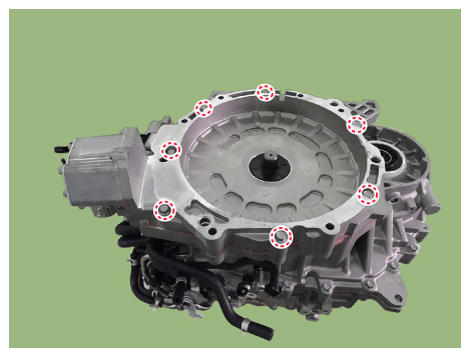

  2. Remove the motor assembly mounting bolts.
    G12355458Courtesy of KIA MOTORS AMERICA, INC.

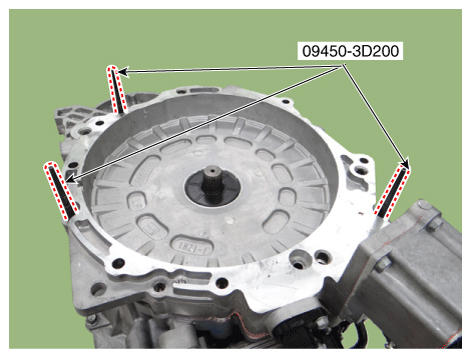

  3. Install the motor removal/installation guide (09450-3D200).
    G12355459Courtesy of KIA MOTORS AMERICA, INC.

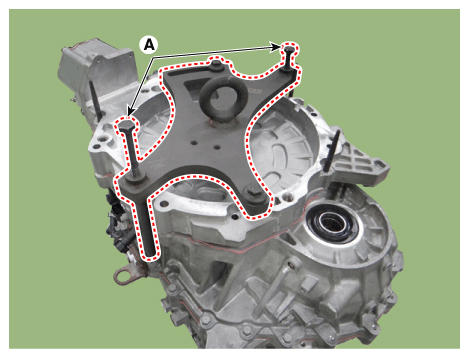

  4. After installing the motor removal/installation jig (09365-3D630), separate the motor assembly from automatic transaxle by tightening the bolts (A).
    G12355460Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Tighten the bolts (A) in turns.

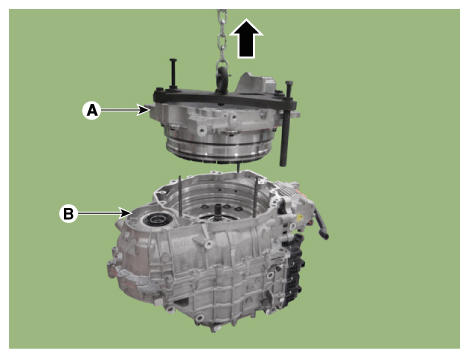

  5. By using a jack, lift off the motor assembly (A) from the automatic transaxle (B).
    G12355461Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Keep foreign substances away from the motor coil part.
    • Be careful not to touch ground with motor coil part.
    • Be careful not to impact the motor assembly as it may get damaged.
  6. Remove the spacer (A).
    G12355462Courtesy of KIA MOTORS AMERICA, INC.

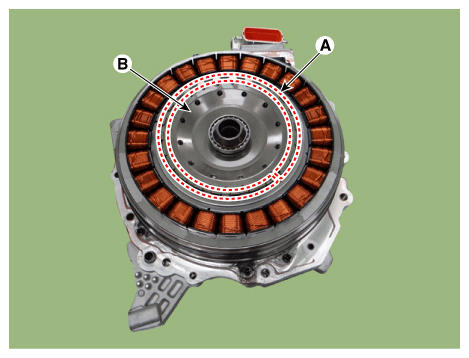

  7. After removing the snap ring (A), remove the engine clutch assembly (B).
G12355463Courtesy of KIA MOTORS AMERICA, INC.
