Repair Procedures: Installation

  1. Install in the reverse order of removal.

    Spark Plug Installation

    14.7 ~ 24.5 N.m (1.5 ~ 2.5 kgf.m, 10.8 ~ 18.0 lb-ft)

    NOTE:
    • Install the ignition coil with the specified torque.
    • If ignition coil is dropped, it may cause internal damage. Do not use it.

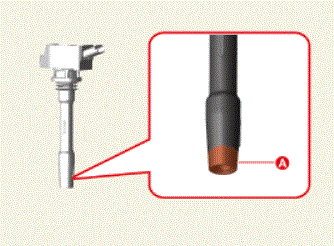

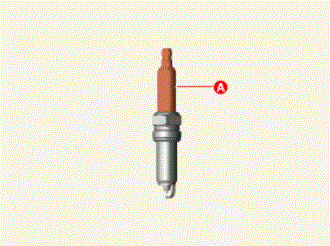

    • When assembling the parts, clean the contaminated area (A).
      • The cloth should be clean, free of contaminants, and soft enough to not damage the parts.

        (When replacing ignition coil and spark plug together, cleaning is not required.)

      G00667416Courtesy of KIA MOTORS AMERICA, INC.
      G00667420Courtesy of KIA MOTORS AMERICA, INC.
