Neutralization Status Check

Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
After IG ON, select the "Neutralization mode".

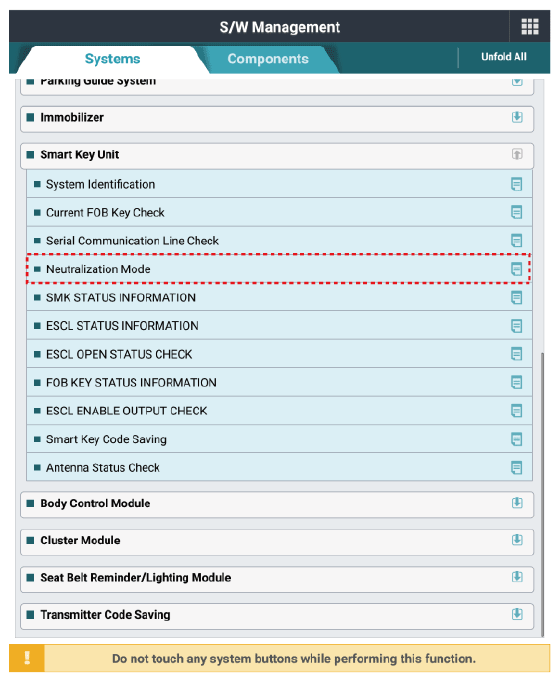

G12822551

Courtesy of KIA MOTORS AMERICA, INC.

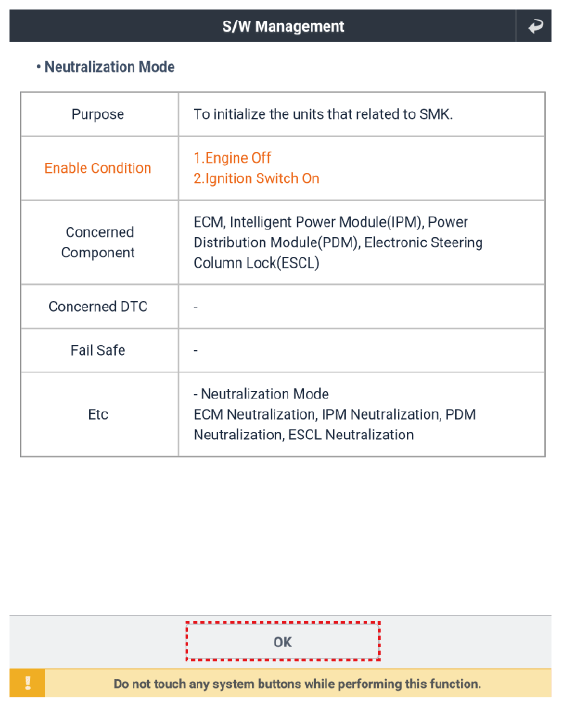

G12822552

Courtesy of KIA MOTORS AMERICA, INC.

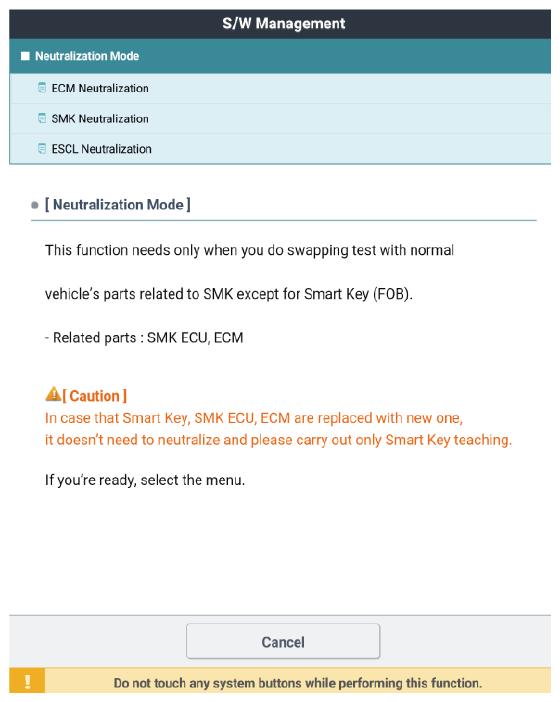

G12822553

Courtesy of KIA MOTORS AMERICA, INC.

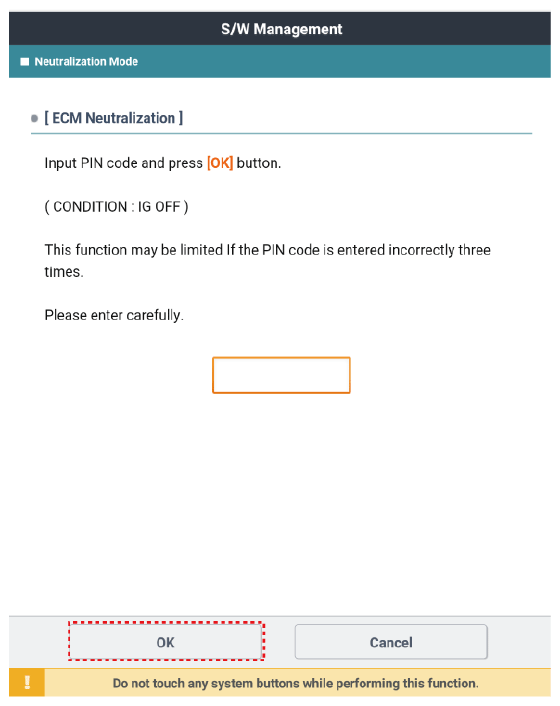

G12822554

Courtesy of KIA MOTORS AMERICA, INC.

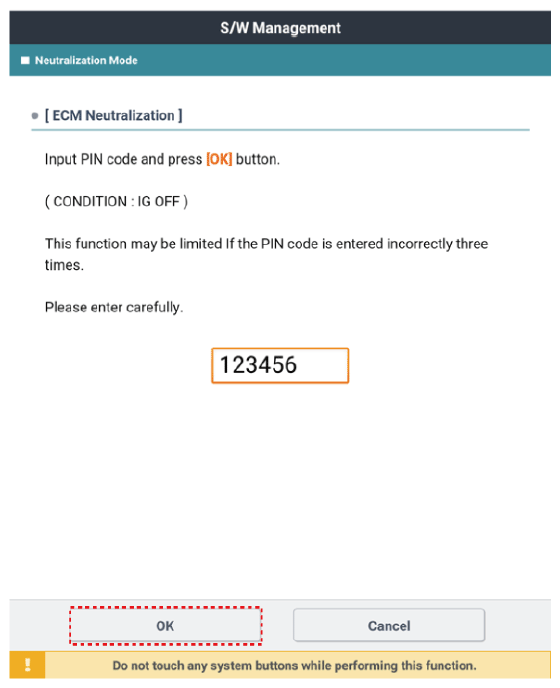

G12822555

Courtesy of KIA MOTORS AMERICA, INC.

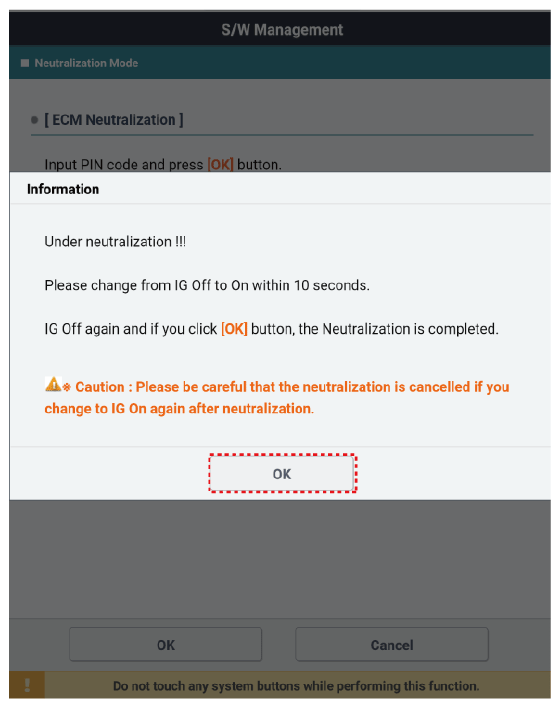

G12822556

Courtesy of KIA MOTORS AMERICA, INC.

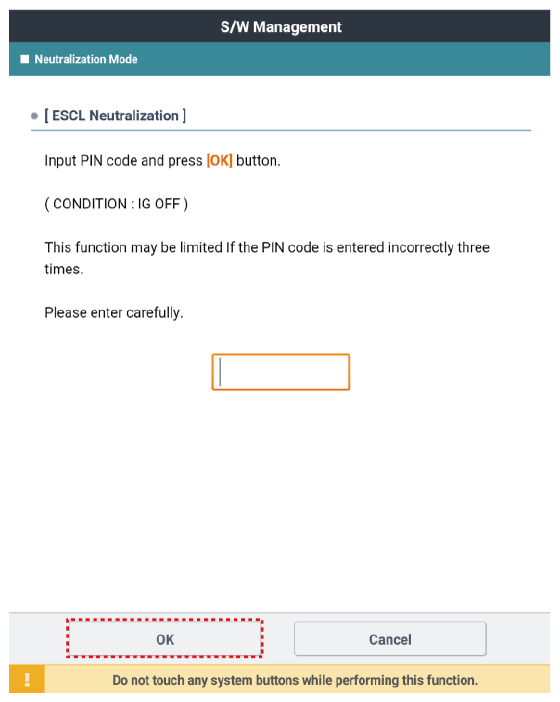

G12822557

Courtesy of KIA MOTORS AMERICA, INC.

G12822558

Courtesy of KIA MOTORS AMERICA, INC.

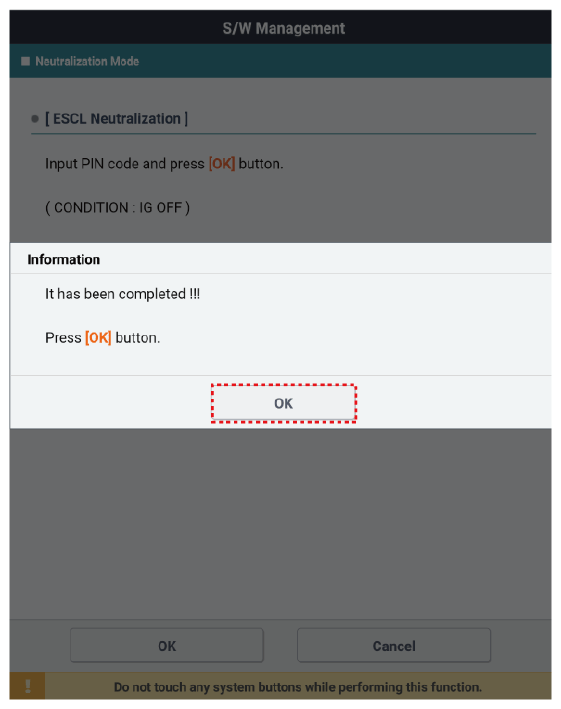

G12822559

Courtesy of KIA MOTORS AMERICA, INC.

G12822560

Courtesy of KIA MOTORS AMERICA, INC.

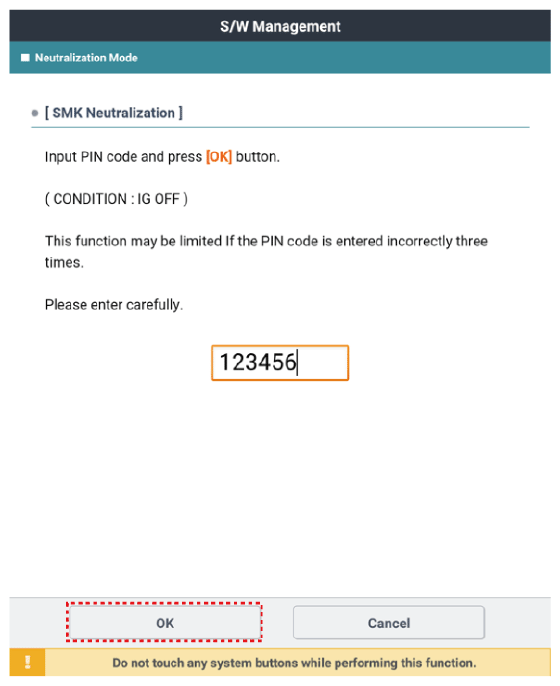

G12822561

Courtesy of KIA MOTORS AMERICA, INC.

G12822562

Courtesy of KIA MOTORS AMERICA, INC.
