Smart Key Status Check

  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "SMK STATUS INFO".

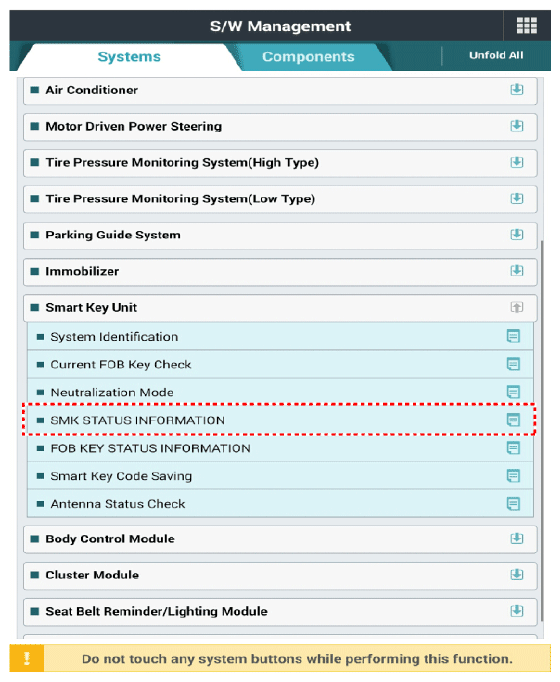

G12822548Courtesy of KIA MOTORS AMERICA, INC.

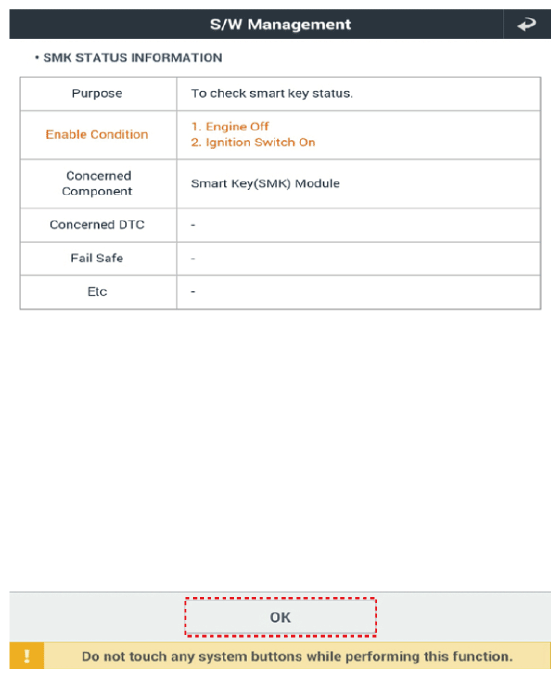

G12822549Courtesy of KIA MOTORS AMERICA, INC.

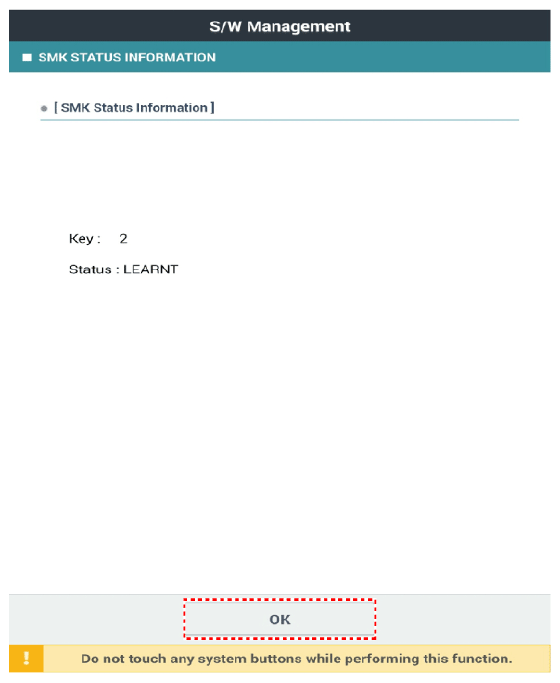

G12822550Courtesy of KIA MOTORS AMERICA, INC.
