Smart Key Code Saving

  1. Connect the DLC cable of KDS to the data link connector in driver side crash pad lower panel, and turn the power on KDS.
    G12822503Courtesy of KIA MOTORS AMERICA, INC.

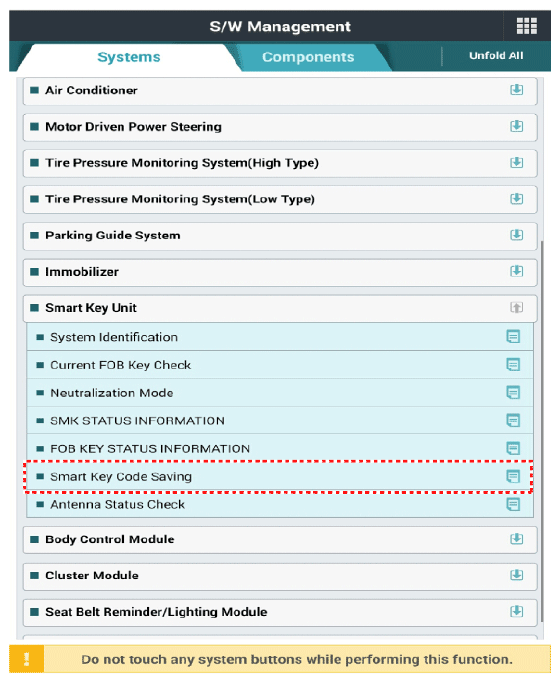

  2. Select the vehicle model and then do "Smart key code saving".
    G12822504Courtesy of KIA MOTORS AMERICA, INC.

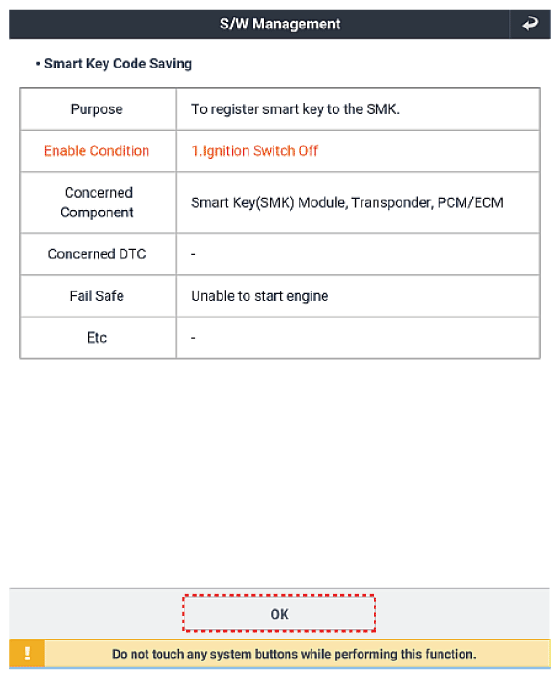

    G12822505Courtesy of KIA MOTORS AMERICA, INC.
  3. After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as in the illustration below.

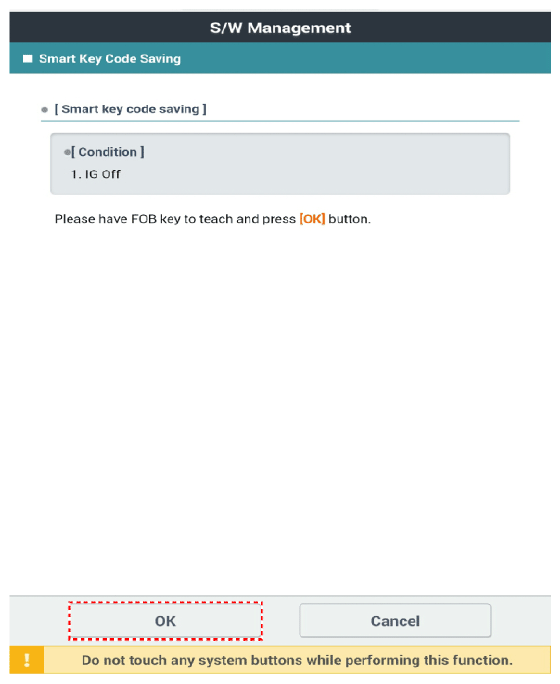

    G12822506Courtesy of KIA MOTORS AMERICA, INC.
  4. After having the teaching smart key, push "ENTER" key.

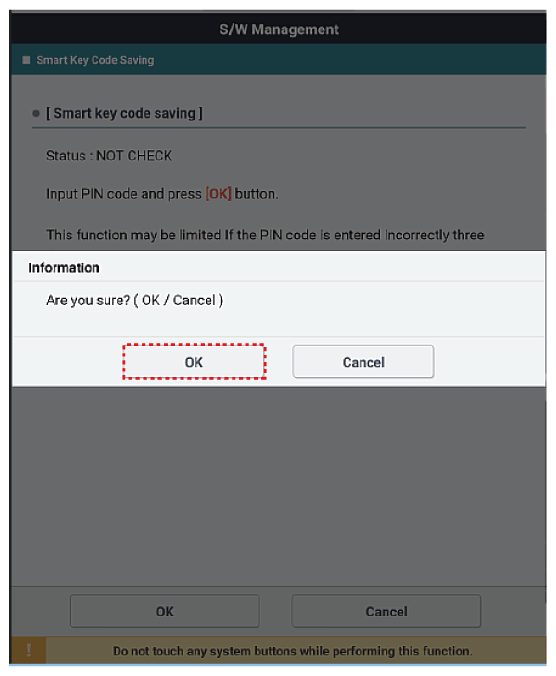

  5. Input the "Pin code" for first key teaching.

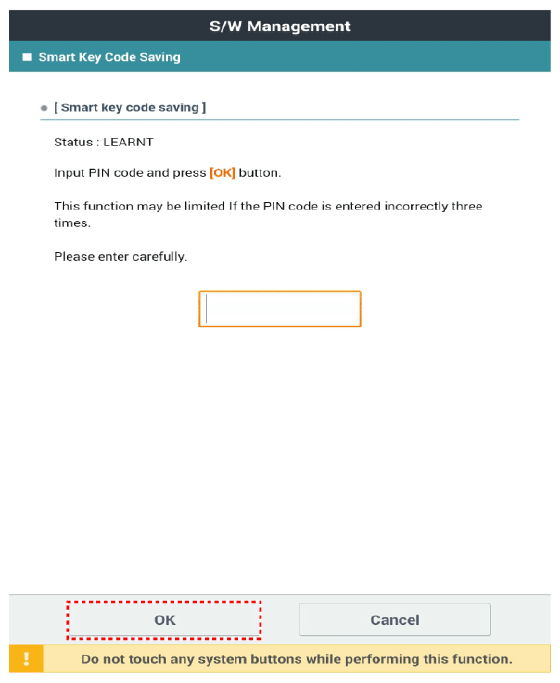

    G12822507Courtesy of KIA MOTORS AMERICA, INC.

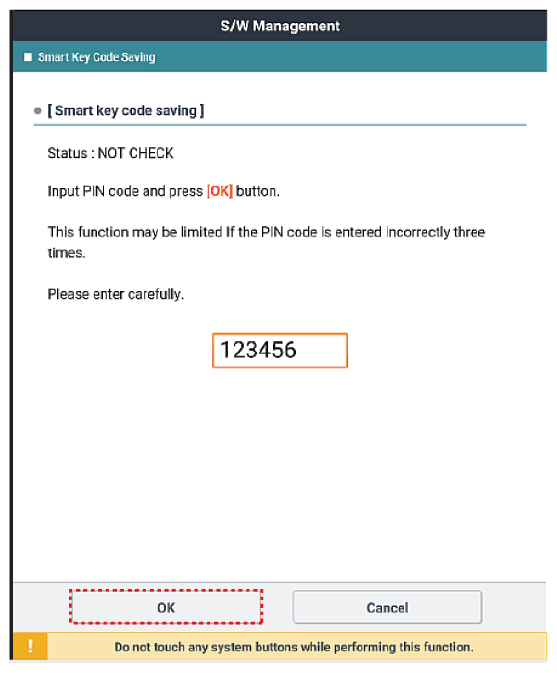

    G12822508Courtesy of KIA MOTORS AMERICA, INC.
    G12822509Courtesy of KIA MOTORS AMERICA, INC.
  6. Confirm the message "First key teaching completed".

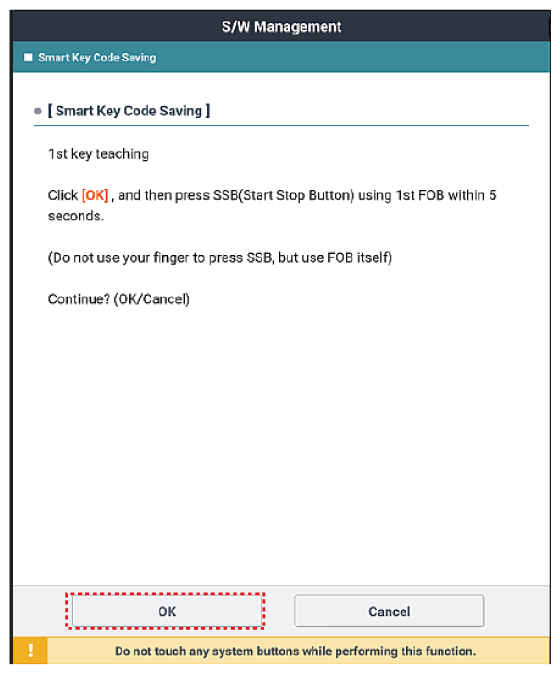

    G12822510Courtesy of KIA MOTORS AMERICA, INC.
  7. Press the SSB with smart key within 5 sec after pressing "OK".

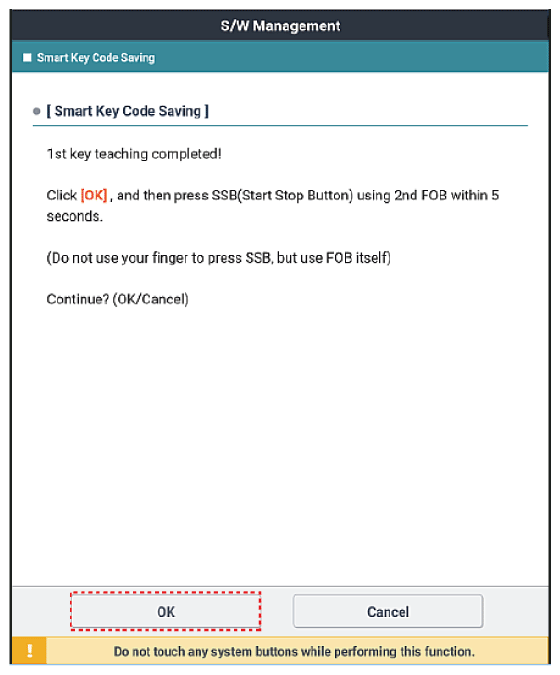

    G12822511Courtesy of KIA MOTORS AMERICA, INC.
  8. Confirm the message "Second key teaching completed".

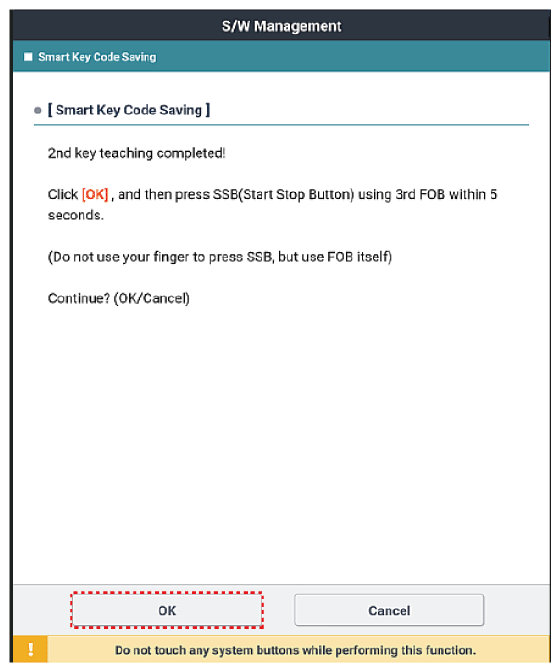

    G12822512Courtesy of KIA MOTORS AMERICA, INC.
    G12822513Courtesy of KIA MOTORS AMERICA, INC.
  9. Then the screen will be shown as in the illustration below when key teaching process is completed.

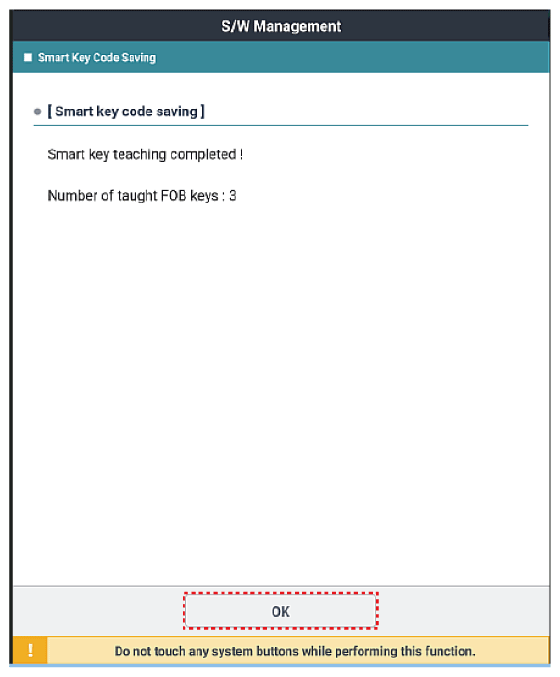

G12822514Courtesy of KIA MOTORS AMERICA, INC.
