Liftgate Open Switch

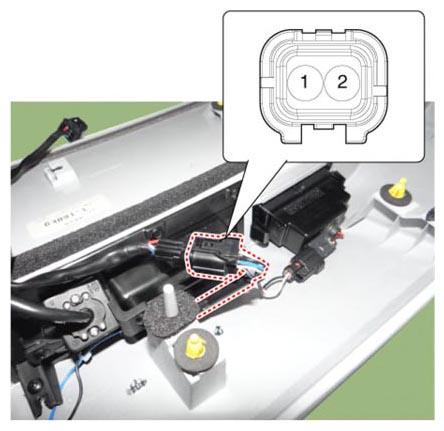

  1. Check for continuity between the liftgate open switch terminals.
    G12798852Courtesy of KIA MOTORS AMERICA, INC.

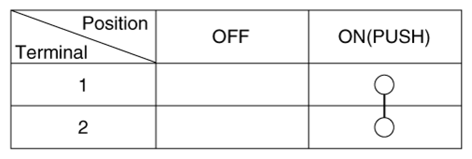

  2. If continuity is not specified, inspect the switch
    G12798853Courtesy of KIA MOTORS AMERICA, INC.
