Home >> Kia >> 2018 >> Stinger Base, AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.0L >> CVVT Oil Temperature Sensor (OTS) >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

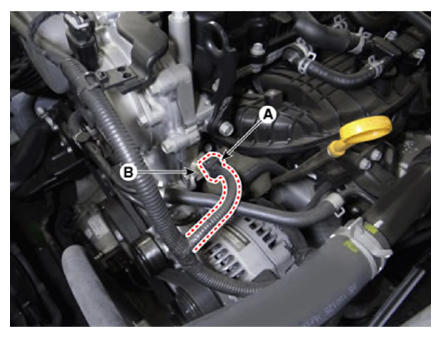

  2. Disconnect the oil temperature sensor connector (A).
  3. Remove the oil temperature sensor (B).
G12792317Courtesy of KIA MOTORS AMERICA, INC.
