Repair Procedures: Disassembly

  1. Loosen the screw and then remove the upper cover.

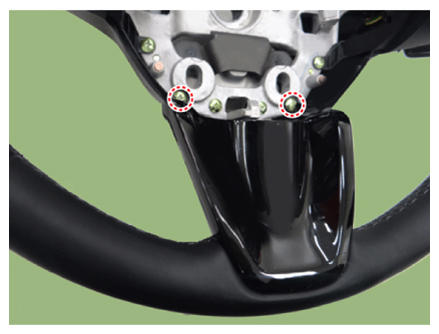

    G12791491Courtesy of KIA MOTORS AMERICA, INC.

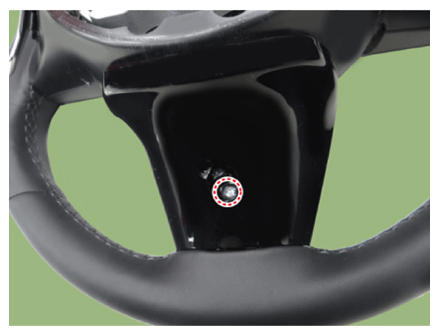

    G12791492Courtesy of KIA MOTORS AMERICA, INC.

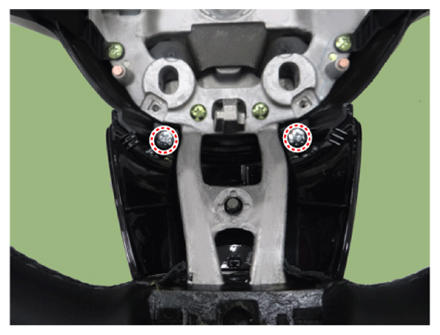

    G12791493Courtesy of KIA MOTORS AMERICA, INC.

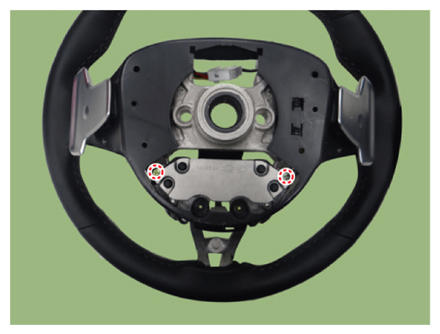

  2. Loosen the damper screw and then remove the damper.
    G12791494Courtesy of KIA MOTORS AMERICA, INC.

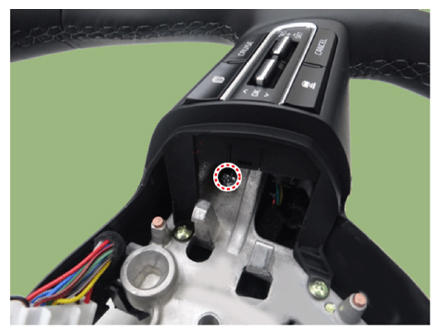

  3. Loosen the paddle shift screw.

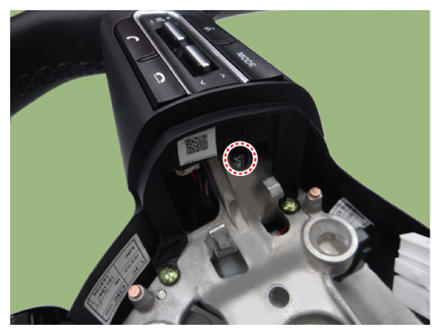

    G12791495Courtesy of KIA MOTORS AMERICA, INC.
    G12791496Courtesy of KIA MOTORS AMERICA, INC.
  4. Using the driver, disconnect the paddle shift connector.

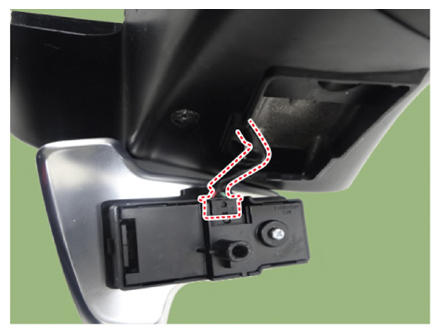

    G12791497Courtesy of KIA MOTORS AMERICA, INC.
  5. Loosen the remote control switch screw and then separate the remote control switch.

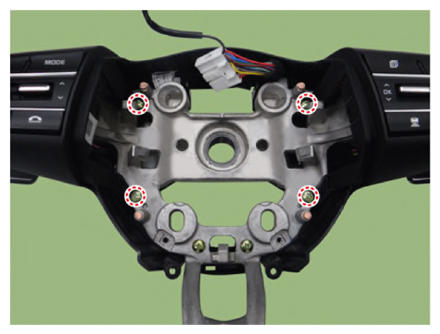

    G12791498Courtesy of KIA MOTORS AMERICA, INC.
  6. Disconnect the remote control switch connector and then remove the remote control switch & lower cover.

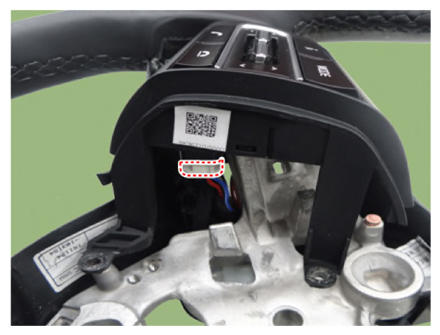

    G12791499Courtesy of KIA MOTORS AMERICA, INC.
  7. Disconnect the connector and then remove the steering wheel body.

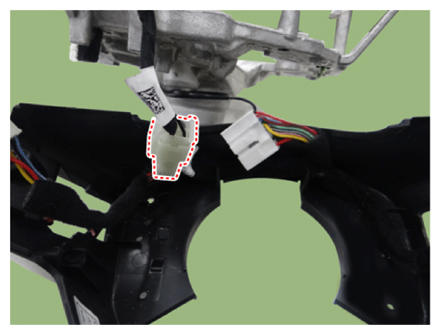

    G12791500Courtesy of KIA MOTORS AMERICA, INC.
  8. Install in the reverse order of removal.
