Home >> Kia >> 2018 >> Stinger Base, RWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.0L >> Components And Components Location >> Components Location

Components Location

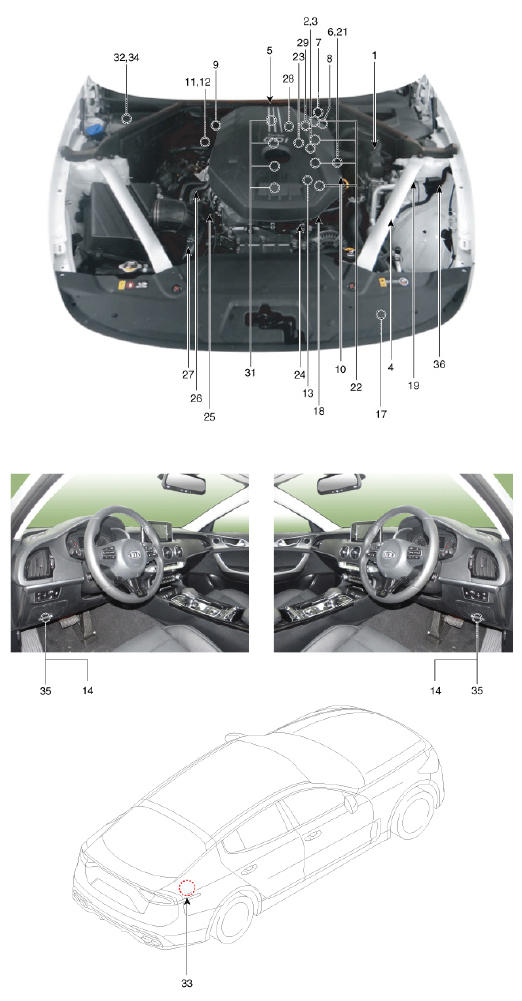

G12792321Courtesy of KIA MOTORS AMERICA, INC.

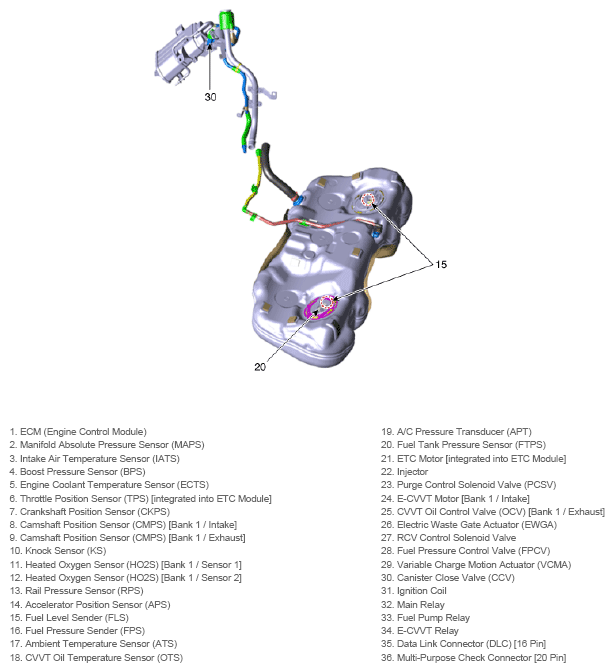

G12792322Courtesy of KIA MOTORS AMERICA, INC.

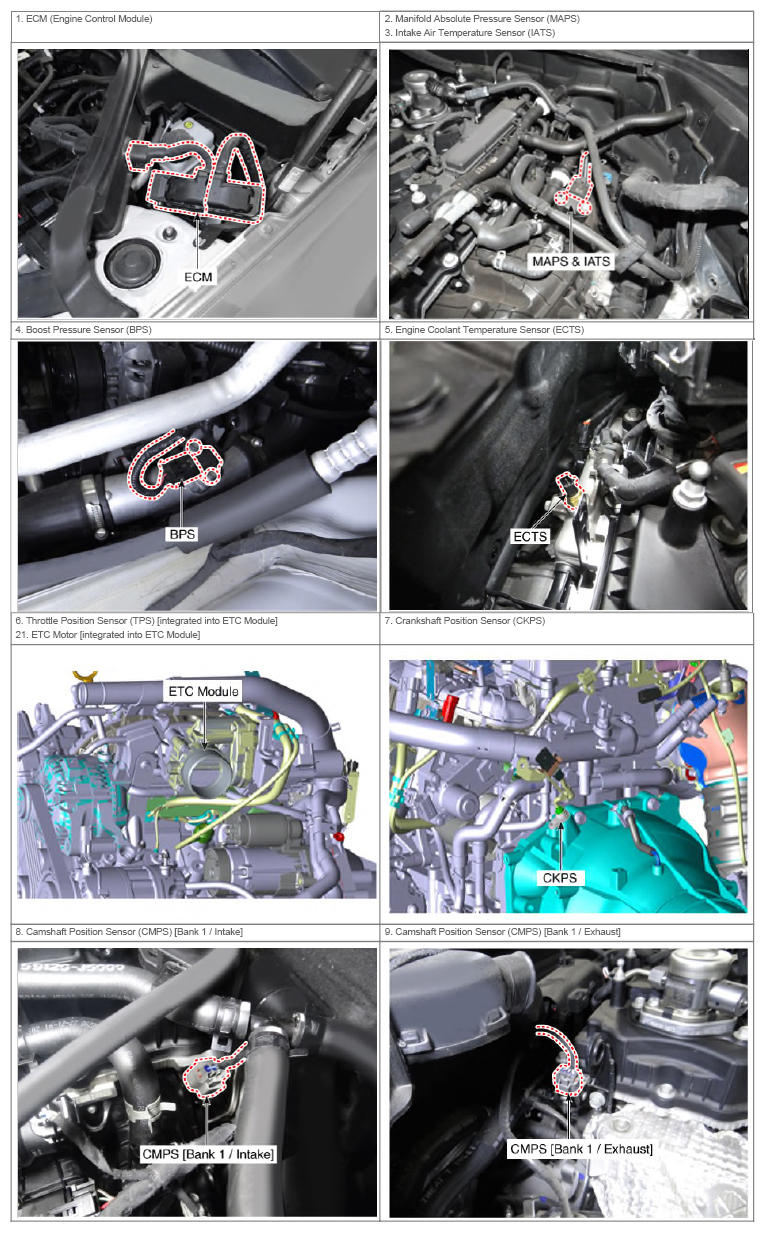

G12792323Courtesy of KIA MOTORS AMERICA, INC.

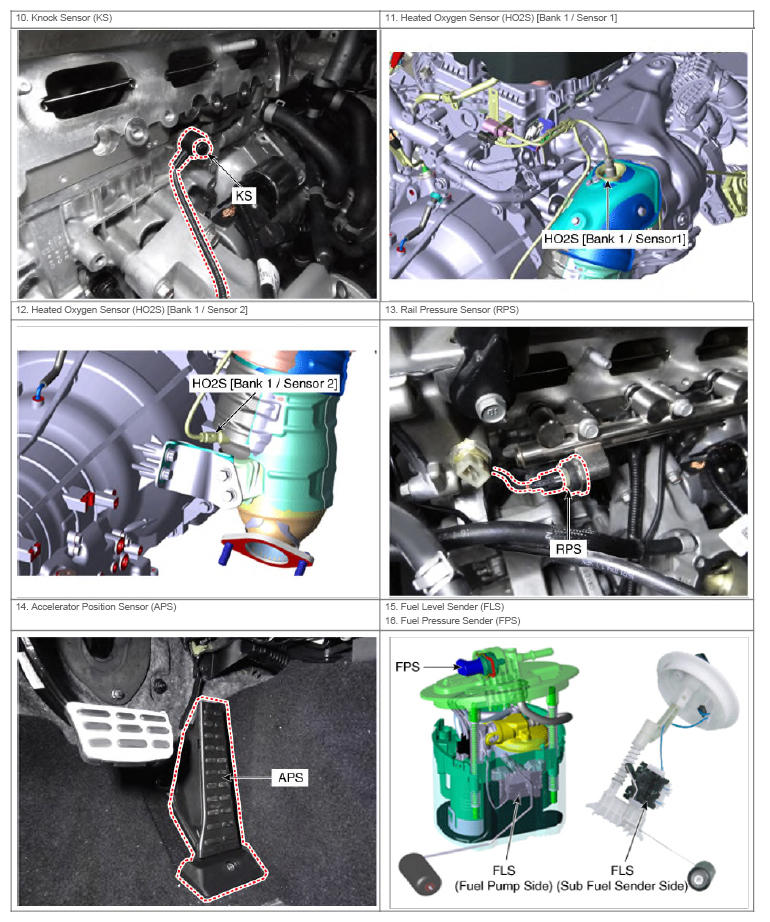

G12792324Courtesy of KIA MOTORS AMERICA, INC.

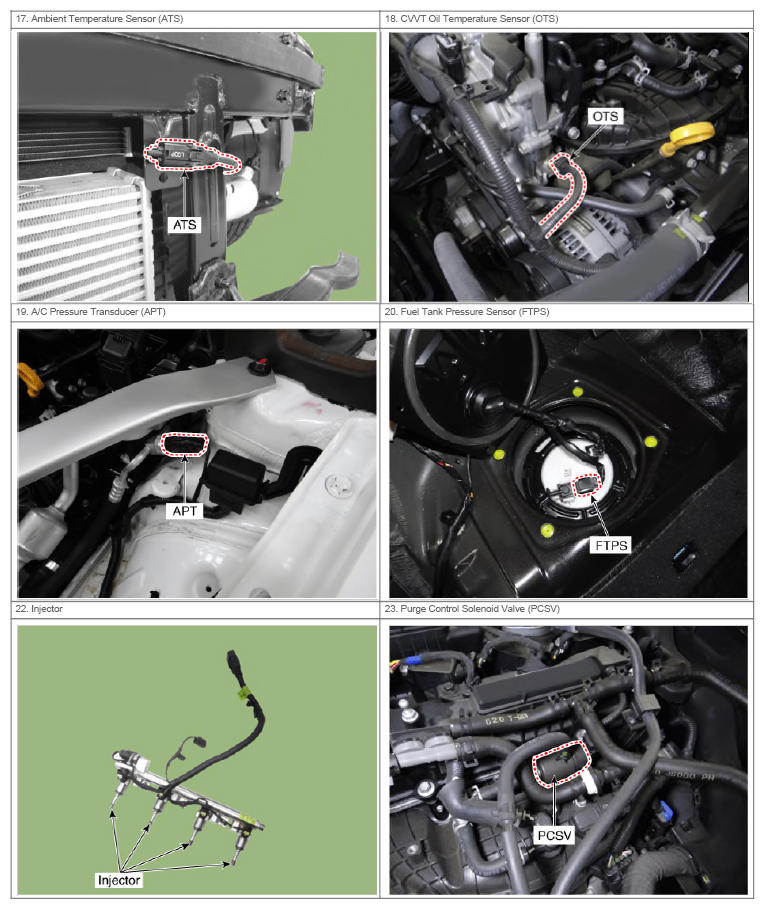

G12792325Courtesy of KIA MOTORS AMERICA, INC.

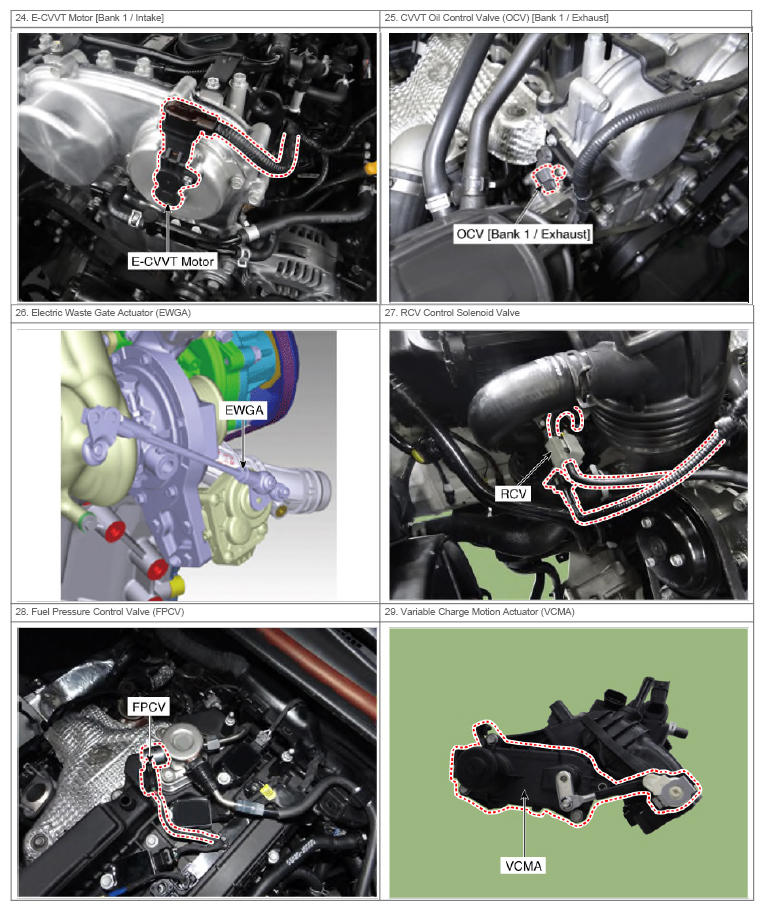

G12792326Courtesy of KIA MOTORS AMERICA, INC.

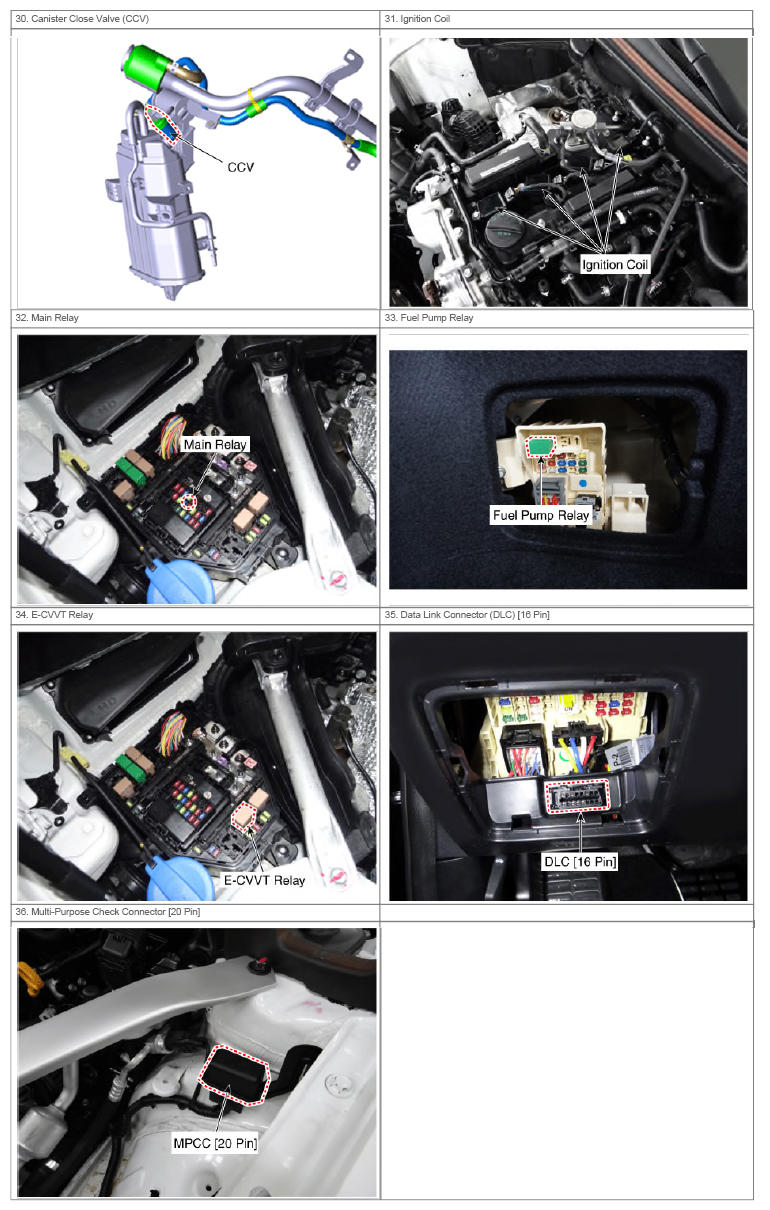

G12792327Courtesy of KIA MOTORS AMERICA, INC.
