Smart Key Status Check

  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "SMK STATUS INFO".

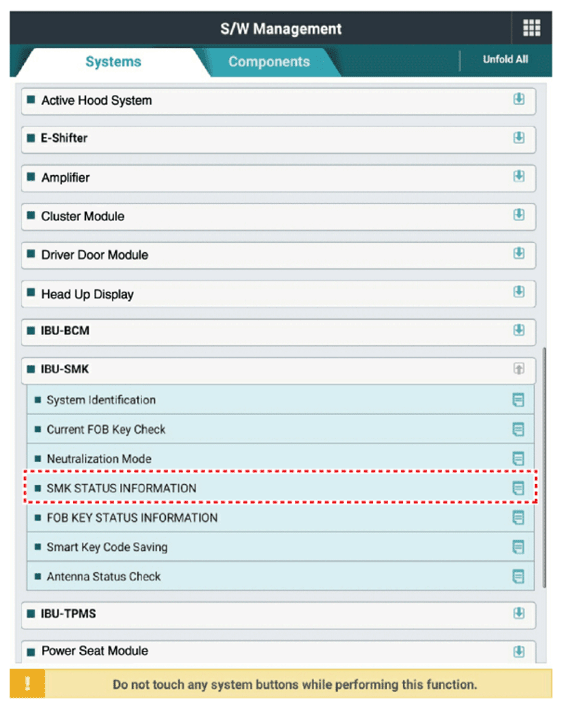

    G12832746Courtesy of KIA MOTORS AMERICA, INC.

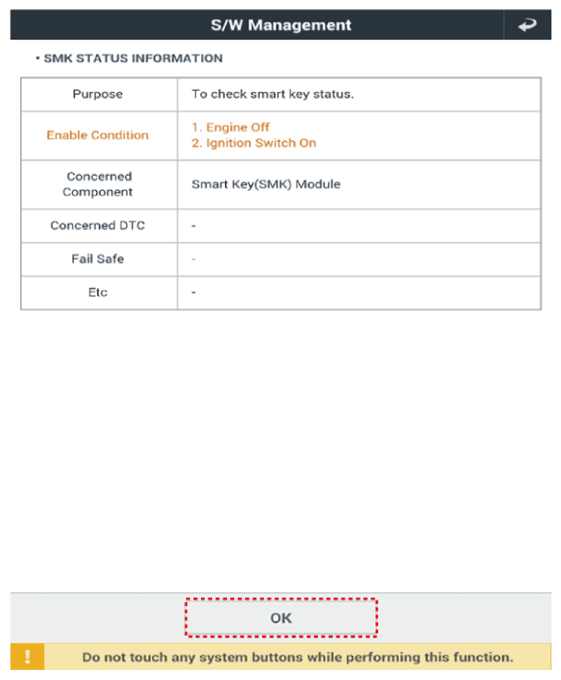

    G12832747Courtesy of KIA MOTORS AMERICA, INC.

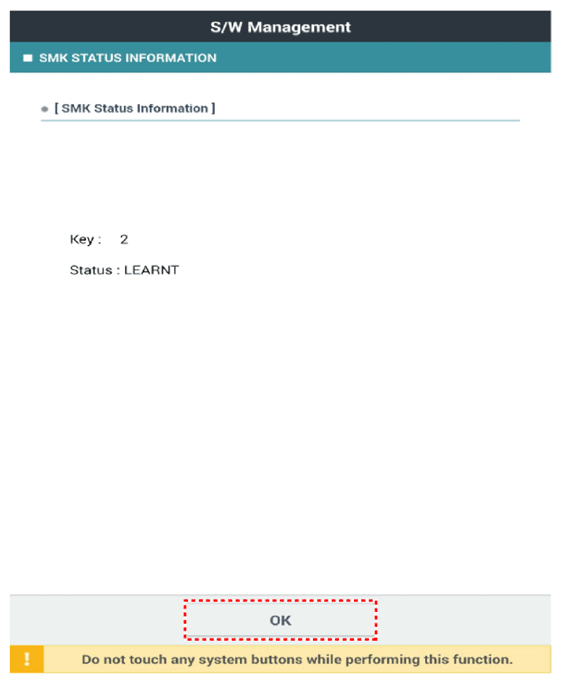

    G12832748Courtesy of KIA MOTORS AMERICA, INC.
