Smart Key Neutralization

  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "Neutralization mode".

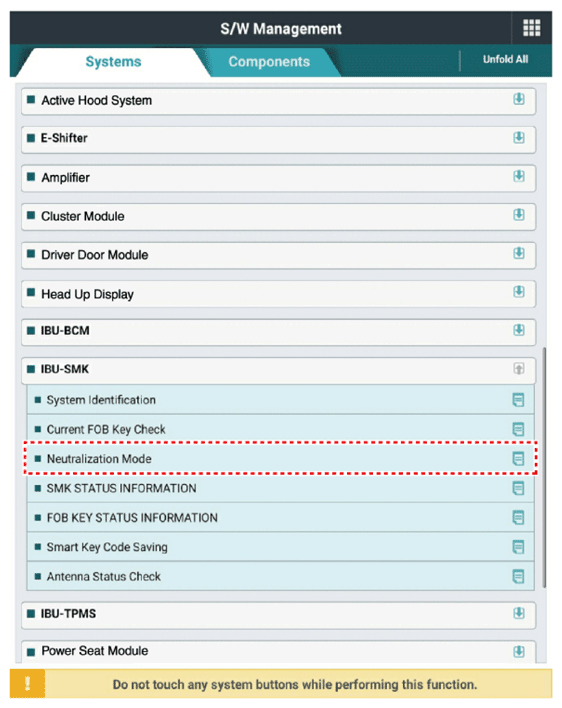

    G12832782Courtesy of KIA MOTORS AMERICA, INC.

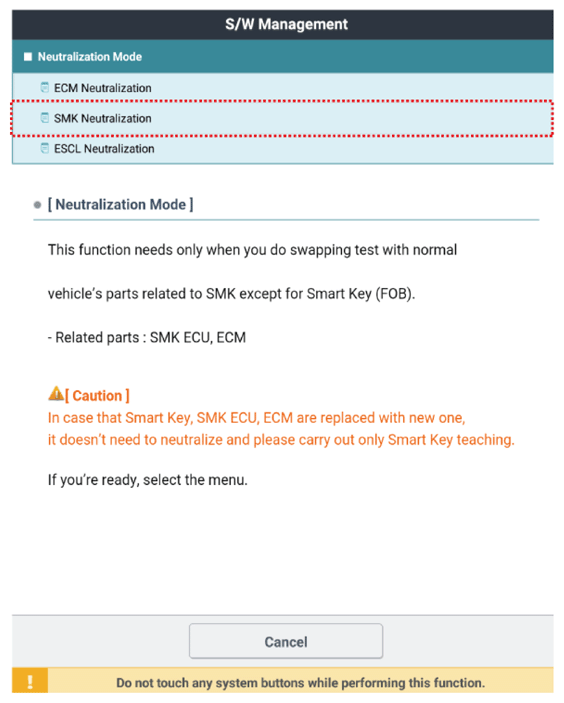

    G12832783Courtesy of KIA MOTORS AMERICA, INC.

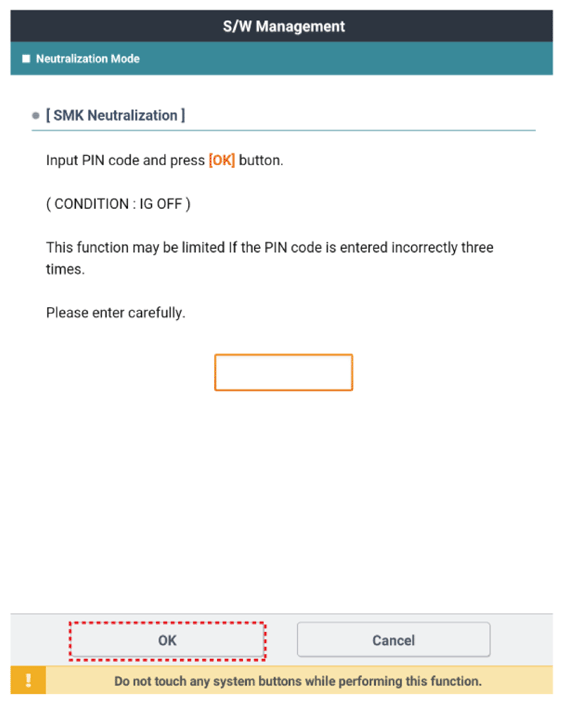

    G12832784Courtesy of KIA MOTORS AMERICA, INC.

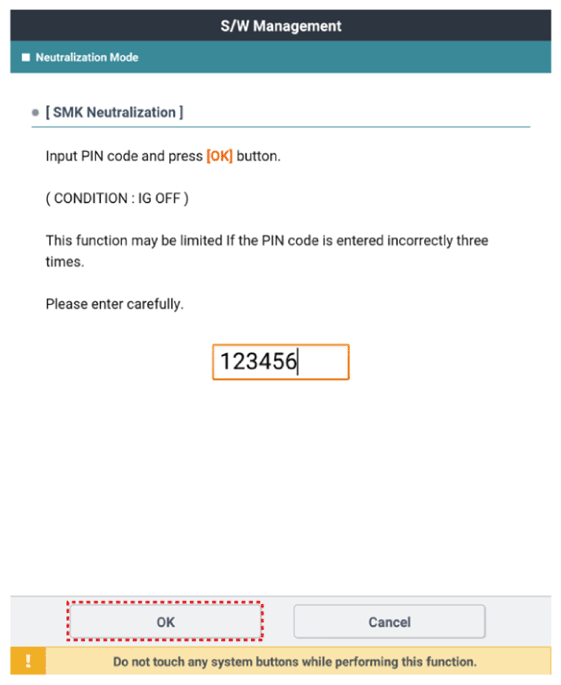

    G12832785Courtesy of KIA MOTORS AMERICA, INC.

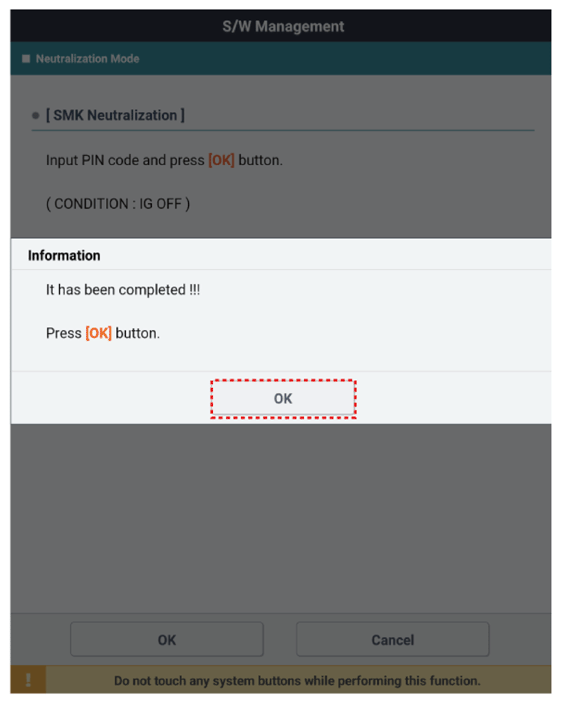

    G12832786Courtesy of KIA MOTORS AMERICA, INC.
