Home >> Kia >> 2019 >> Forte EX >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Smart Key System >> Smart Key Unit >> Repair Procedures >> Inspection >> Trunk Open Switch

Trunk Open Switch

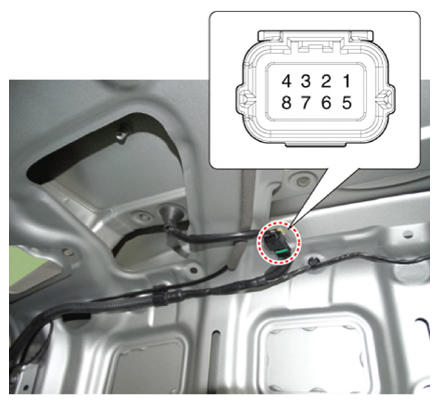

  1. Check for continuity between the trunk open switch terminals.
    G12832780Courtesy of KIA MOTORS AMERICA, INC.

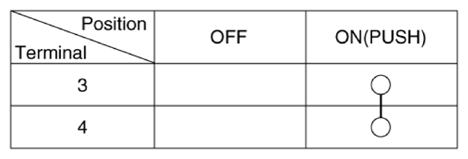

  2. If continuity is not specified, inspect the switch.
    G12832781Courtesy of KIA MOTORS AMERICA, INC.
