Repair Procedures: Replacement

CAUTION: Put on gloves to prevent hand injuries.

NOTE: Use seat covers to avoid damaging any surfaces.

Remove the rear pillar trim.
(Refer to Interior Trim - " REAR PILLAR TRIM ")

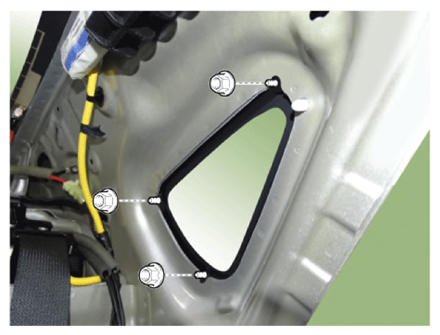

Loosen the quarter fixed glass mounting nut.
Tightening torque:

3.9 - 4.4 N.m (0.4 - 0.45 Kgf.m, 2.9 - 3.3 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the quarter fixed glass (A).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse the removal procedure.
