Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.

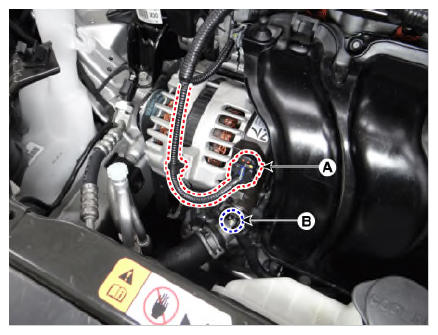

  2. Disconnect the alternator connector (A).
  3. Disconnect the alternator "B" terminal (B) after loosening the mounting nut.
    G12826514Courtesy of KIA MOTORS AMERICA, INC.

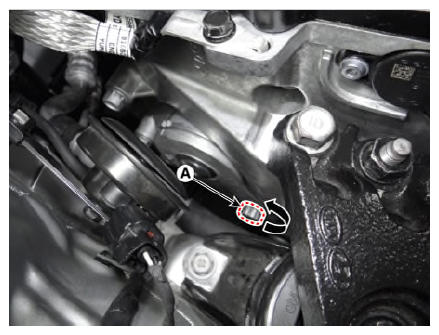

  4. Using the hexagon wrench, turn the tensioner (A) counterclockwise and loosen.
    G12826515Courtesy of KIA MOTORS AMERICA, INC.

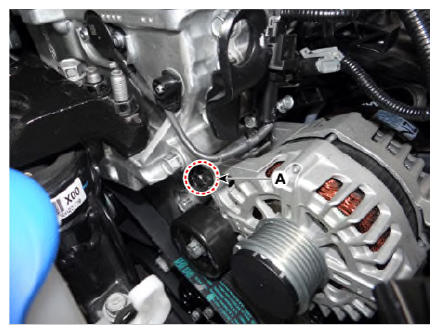

  5. Remove the alternator upper mounting bolt (A).

    Alternator upper mounting bolt:

    29.4-41.2 N.m (3.0-4.2 kgf.m, 21.7-30.4 lb.ft)

    G12826516Courtesy of KIA MOTORS AMERICA, INC.

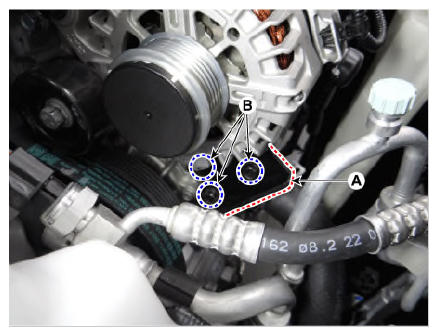

  6. Remove the alternator mounting bracket (A) after loosening the lower mounting bolts (B).

    Alternator bracket & lower mounting bolt:

    21.6-32.4 N.m (2.2-3.3 kgf.m, 15.9-23.9 lb.ft)

    G12826517Courtesy of KIA MOTORS AMERICA, INC.

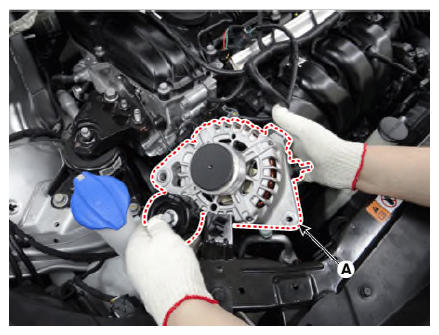

  7. Remove the alternator (A).
    G12826518Courtesy of KIA MOTORS AMERICA, INC.
