Repair Procedures: Removal

Remove the front bumper assembly.
(Refer to Body - " FRONT BUMPER ASSEMBLY ")
Remove the horn (A) by loosening the bolt after disconnecting the connector (B).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

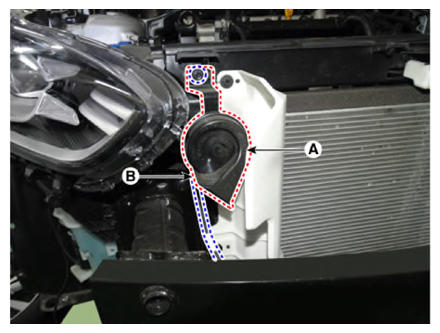

[High]

Courtesy of KIA MOTORS AMERICA, INC.

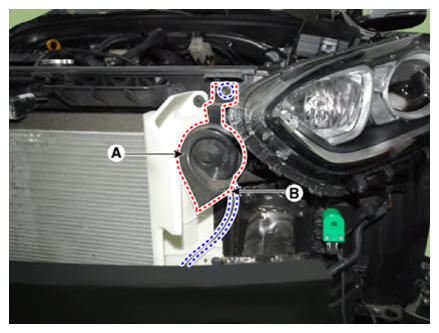

[Low]

Courtesy of KIA MOTORS AMERICA, INC.
