Repair Procedures: Removal

  1. Remove the cylinder head cover.

    (Refer to Cylinder Head Assembly - "CYLINDER HEAD COVER ")

  2. Set No. 1 cylinder to TDC (Top dead center) on compression stroke.

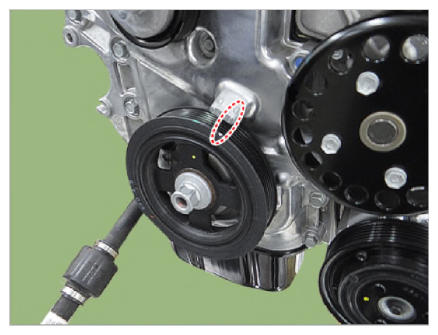

    1. Turn the crankshaft pulley and align its groove with the timing mark of the timing chain cover.
      G12826468Courtesy of KIA MOTORS AMERICA, INC.

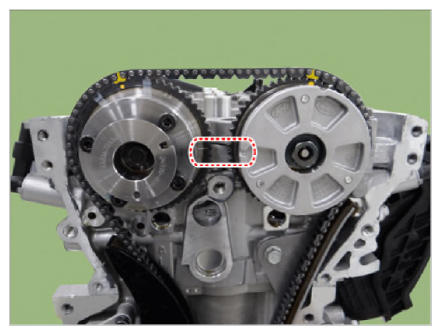

    2. Check that the TDC marks of the intake and exhaust CVVT sprockets are in straight line on the cylinder head surface as shown in the illustration below. If not, turn the crankshaft by one revolution (360°) more.
      G12826469Courtesy of KIA MOTORS AMERICA, INC.
      NOTE: Do not turn the crankshaft pulley counterclockwise.
  3. Remove the timing chain cover.

    (Refer to Timing System - "TIMING CHAIN COVER ")

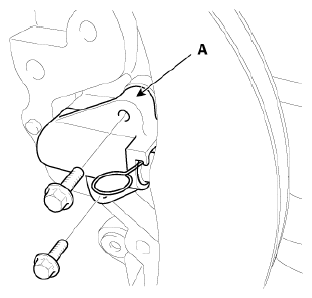

  4. Remove the timing chain tensioner (A).
    G12826470Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Do not reuse the detached tensioner.
  5. Remove the timing chain tensioner arm (A).
    G12826471Courtesy of KIA MOTORS AMERICA, INC.

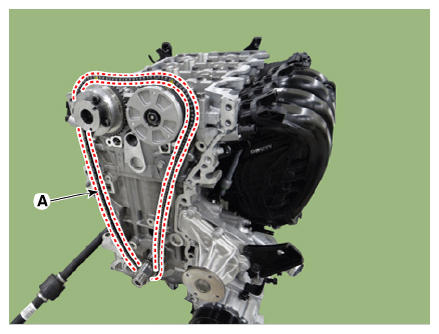

  6. Remove the timing chain (A).
    G12826472Courtesy of KIA MOTORS AMERICA, INC.

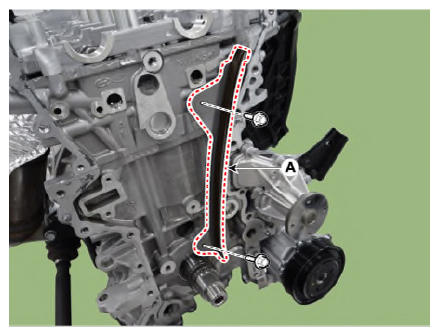

  7. Remove the timing chain guide (A).
    G12826473Courtesy of KIA MOTORS AMERICA, INC.
