Repair Procedures: Removal

  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - " FUEL PUMP  ")

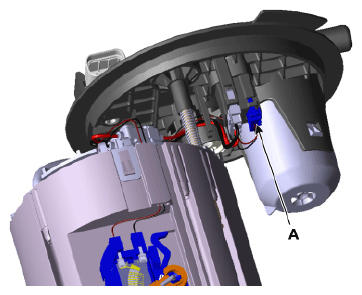

  2. Disconnect the fuel sender connector (A).
    G12830345Courtesy of KIA MOTORS AMERICA, INC.

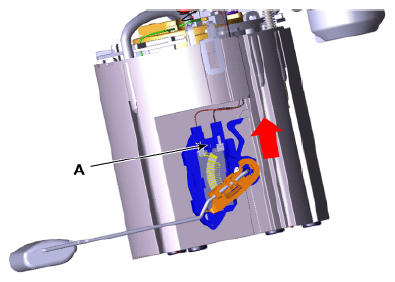

  3. Remove the fuel sender (A) in the direction of an arrow.
    G12830346Courtesy of KIA MOTORS AMERICA, INC.
    G12830347Courtesy of KIA MOTORS AMERICA, INC.
