Repair Procedures: Removal

  1. Set the front tires straight-ahead before removing the steering wheel.
    NOTE: If the steering wheel and the front tires are not set straight ahead together, it may affect the number of circulation of steering wheel and damage the cable inside the clock spring.
  2. Disconnect the negative battery terminal.
    NOTE: After disconnecting the cables, wait at least 30 seconds.
  3. Remove the steering wheel.

    (Refer to Steering System - " STEERING WHEEL  ")

  4. Remove the steering column shroud lower panel.

    (Refer to Body - " STEERING COLUMN SHROUD LOWER PANEL  ")

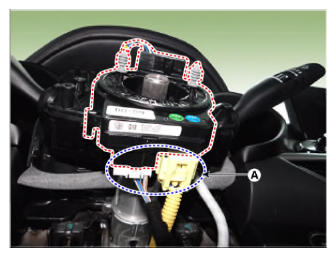

  5. After disconnecting the clock spring connectors (A), remove the clock spring.
    G12831693Courtesy of KIA MOTORS AMERICA, INC.
