Repair Procedures: Disassembly

  1. Disconnect the M-terminal (A) on the magnet switch assembly.
    G12830070Courtesy of KIA MOTORS AMERICA, INC.

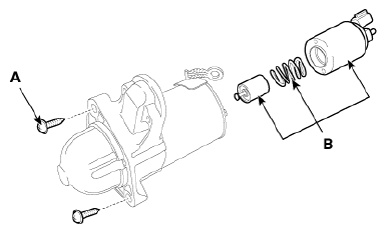

  2. After loosening the screws (A), detach the magnet switch assembly (B).
    G12830071Courtesy of KIA MOTORS AMERICA, INC.

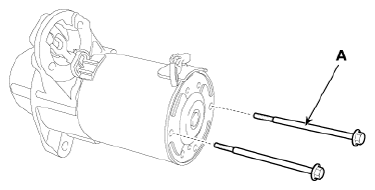

  3. Loosen the through bolts (A).
    G12830072Courtesy of KIA MOTORS AMERICA, INC.

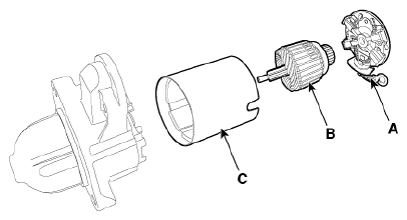

  4. Remove the brush holder assembly (A), armature assembly (B) and yoke assembly (C).
    G12830073Courtesy of KIA MOTORS AMERICA, INC.

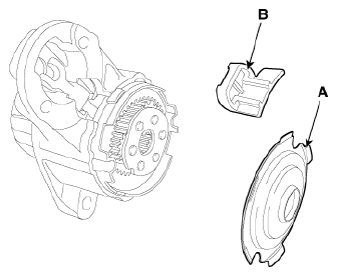

  5. Remove the gasket sheet (A) and lever stop (B).
    G12830074Courtesy of KIA MOTORS AMERICA, INC.

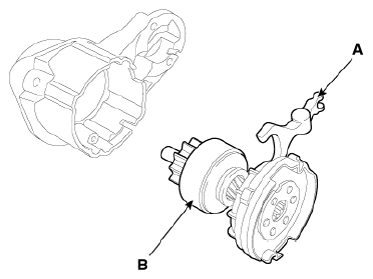

  6. Remove the reducer assembly (A) and lever (B).
    G12830075Courtesy of KIA MOTORS AMERICA, INC.

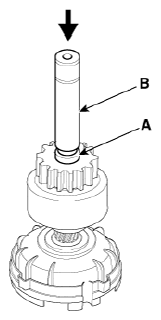

  7. Press the stopper (A) using a socket (B).
    G12830076Courtesy of KIA MOTORS AMERICA, INC.

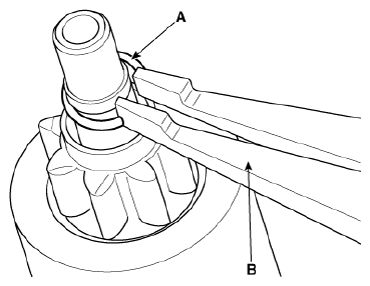

  8. After removing the stop ring (A) using stop ring pliers (B).
    G12830077Courtesy of KIA MOTORS AMERICA, INC.

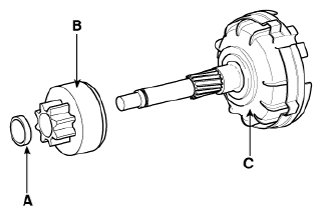

  9. Disconnect the stopper (A), overrunning clutch (B) and internal gear (C).
    G12830078Courtesy of KIA MOTORS AMERICA, INC.

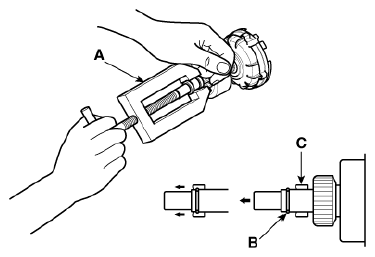

    NOTE: Using a suitable pulling tool (A), pull the overrunning clutch stopper (C) over the stop ring (B).
    G12830079Courtesy of KIA MOTORS AMERICA, INC.
  10. Reassembly is the reverse of disassembly.
