Home >> Kia >> 2019 >> K900 >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> Components And Components Location >> Components Location

Components Location

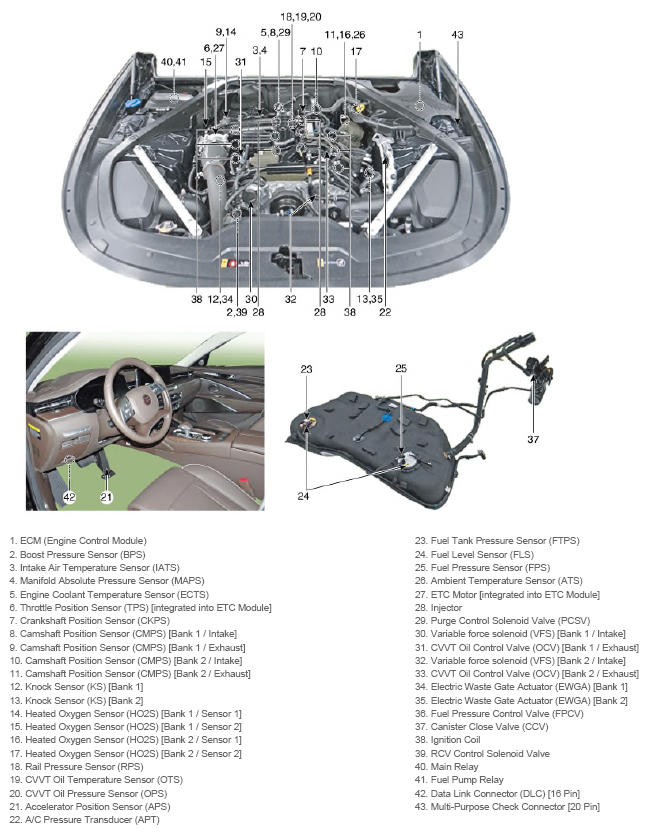

G13143260Courtesy of KIA MOTORS AMERICA, INC.

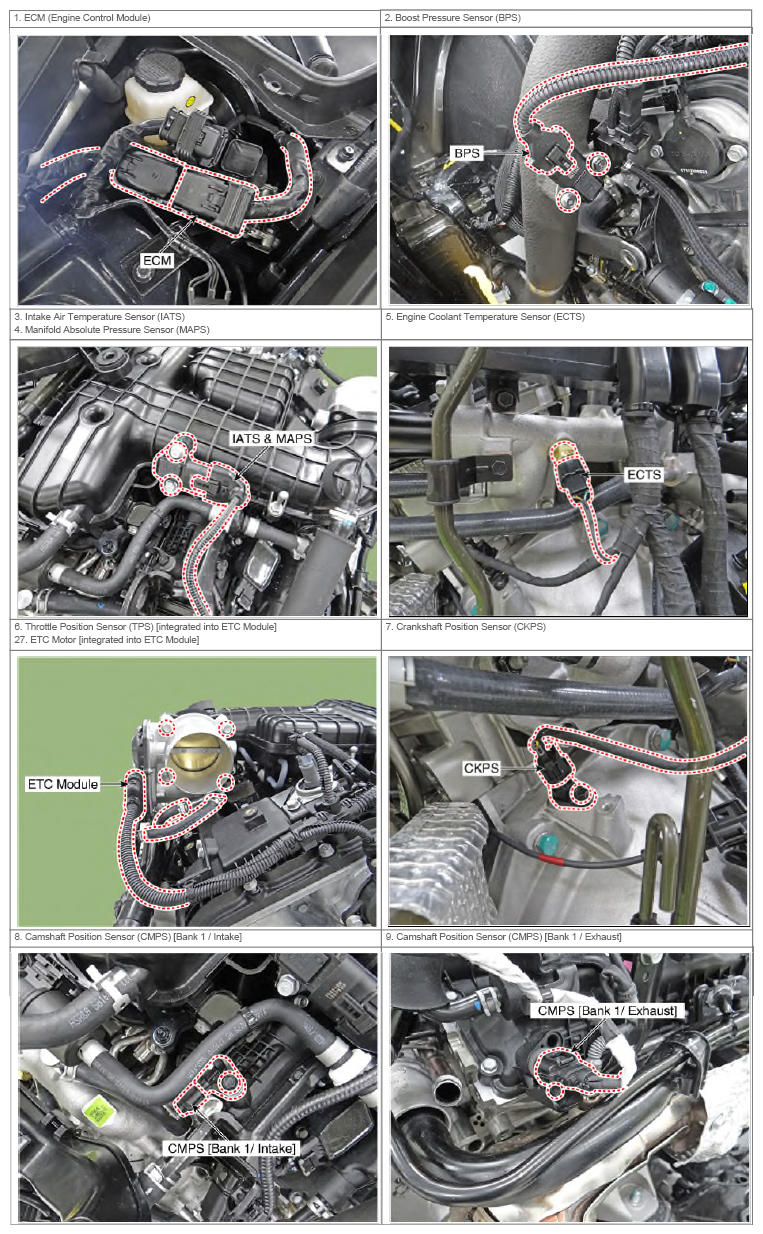

G13143261Courtesy of KIA MOTORS AMERICA, INC.

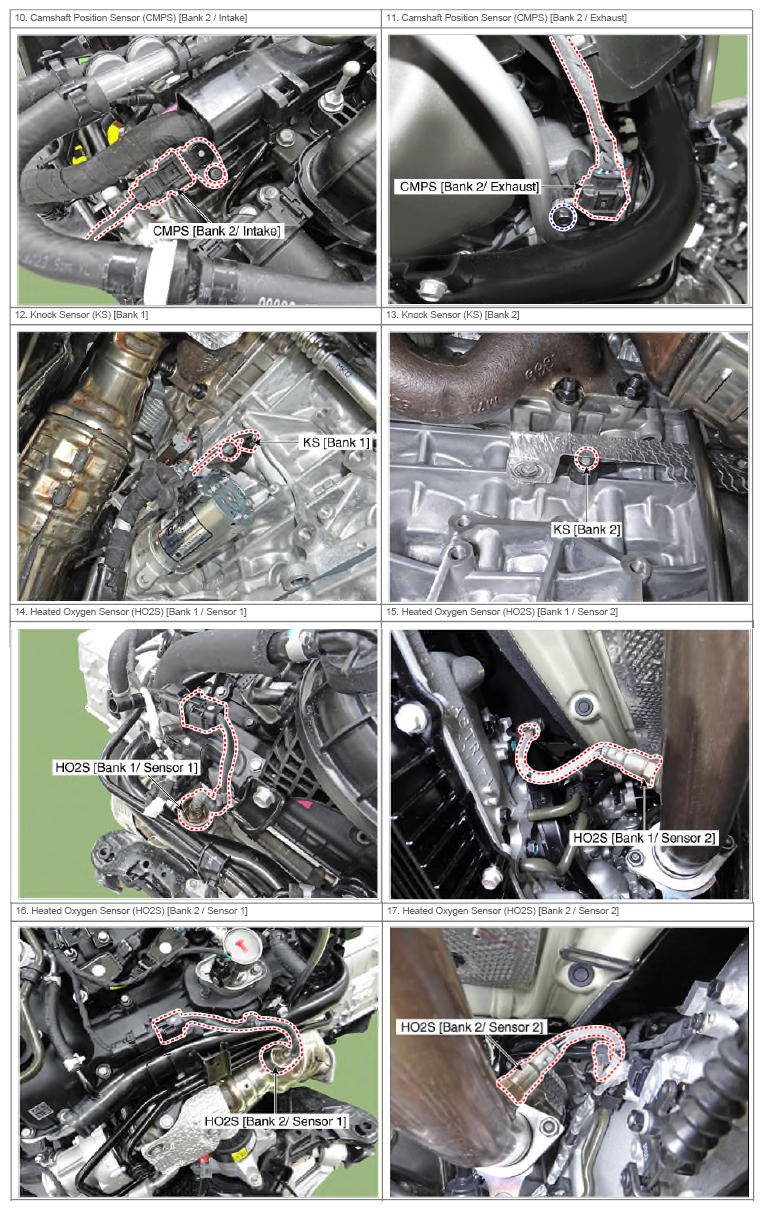

G13143262Courtesy of KIA MOTORS AMERICA, INC.

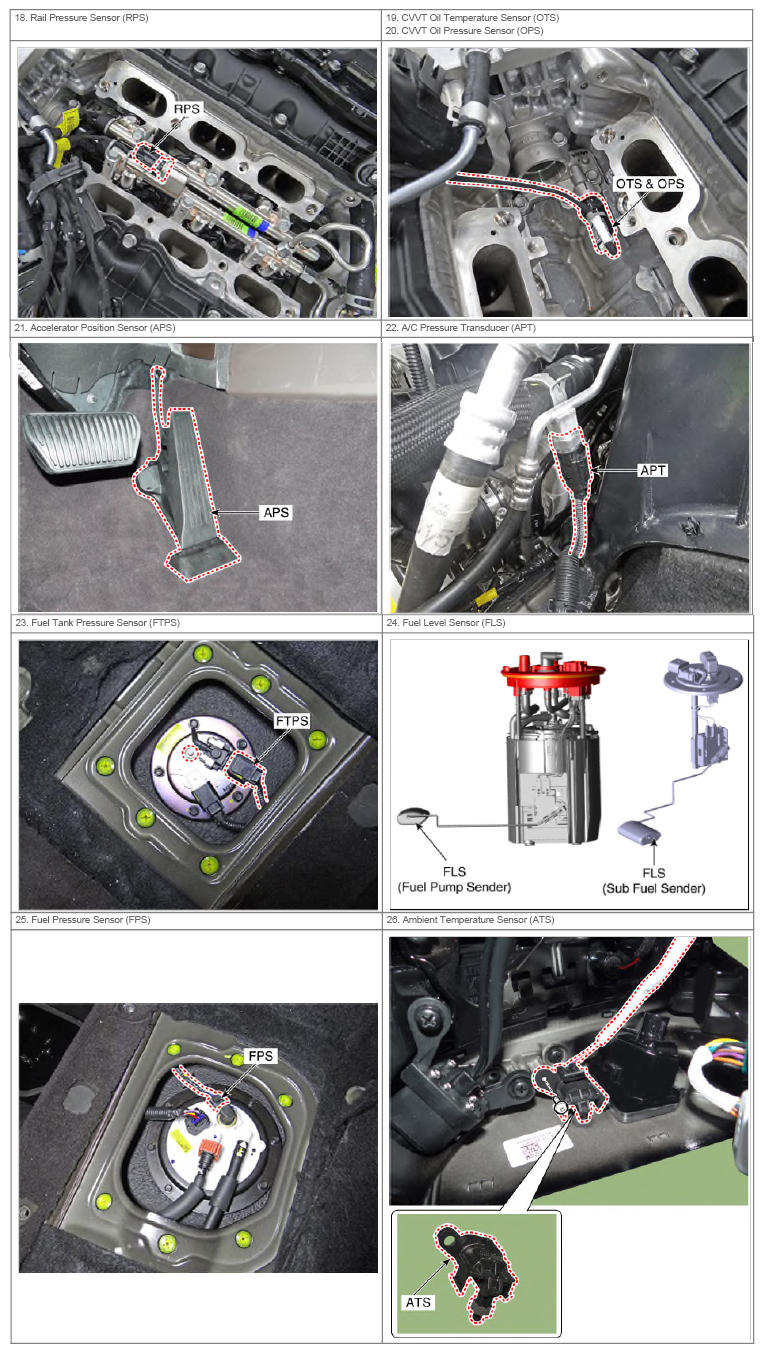

G13143263Courtesy of KIA MOTORS AMERICA, INC.

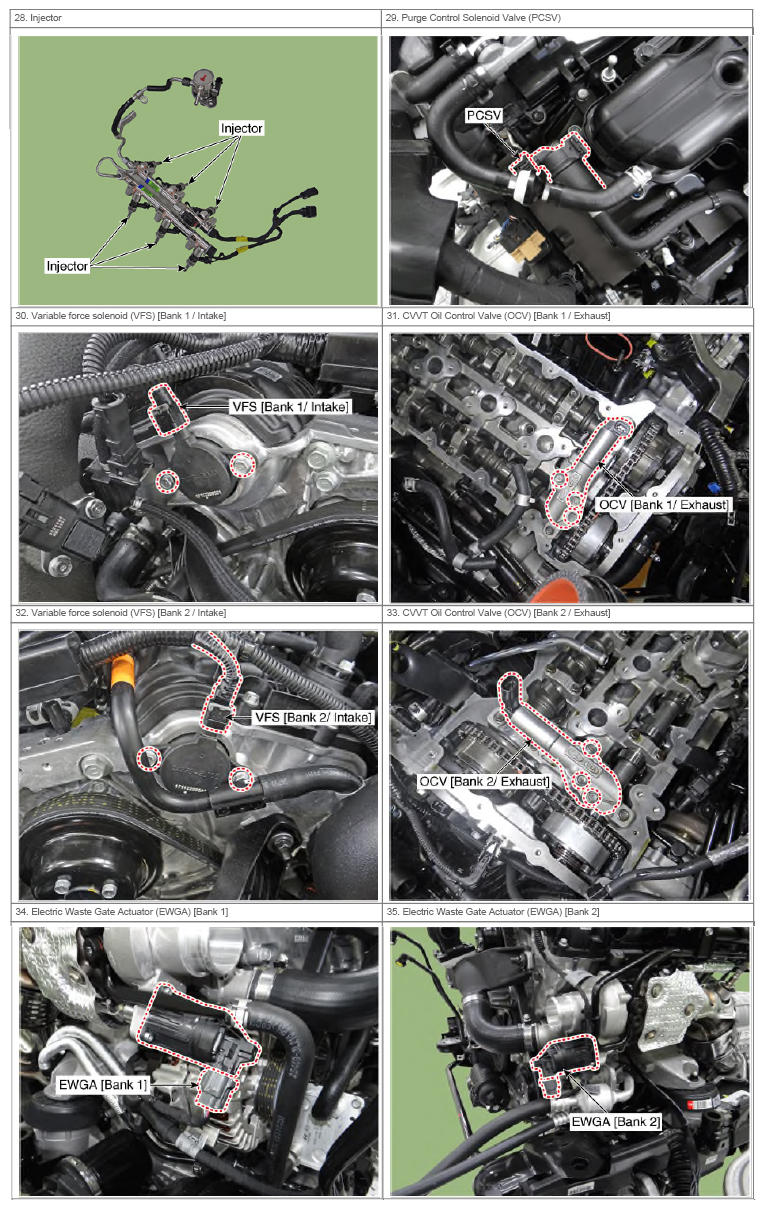

G13143264Courtesy of KIA MOTORS AMERICA, INC.

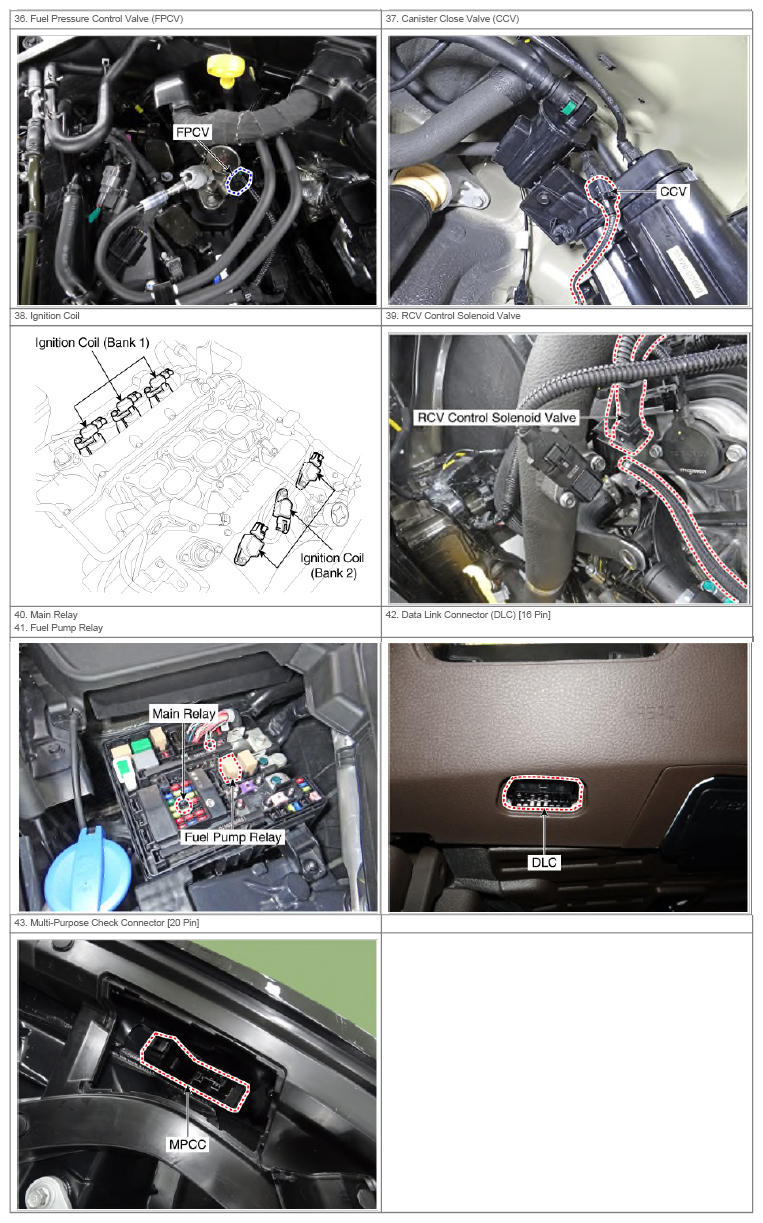

G13143265Courtesy of KIA MOTORS AMERICA, INC.
