Home >> Kia >> 2019 >> Optima EX >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 1.6L (Except HEV) >> Components & Components Location >> Components Location

Components Location

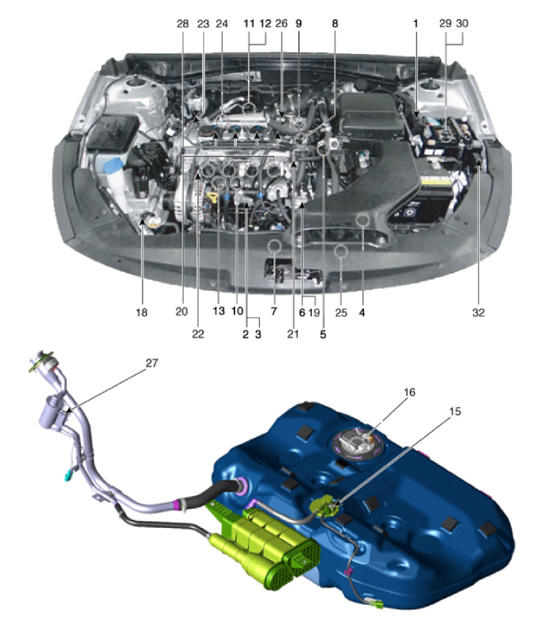

G12915349Courtesy of KIA MOTORS AMERICA, INC.

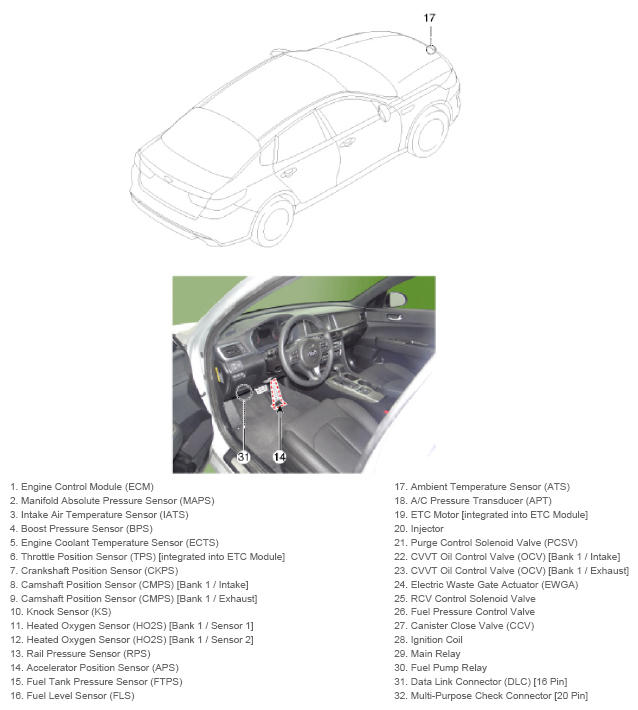

G12915350Courtesy of KIA MOTORS AMERICA, INC.

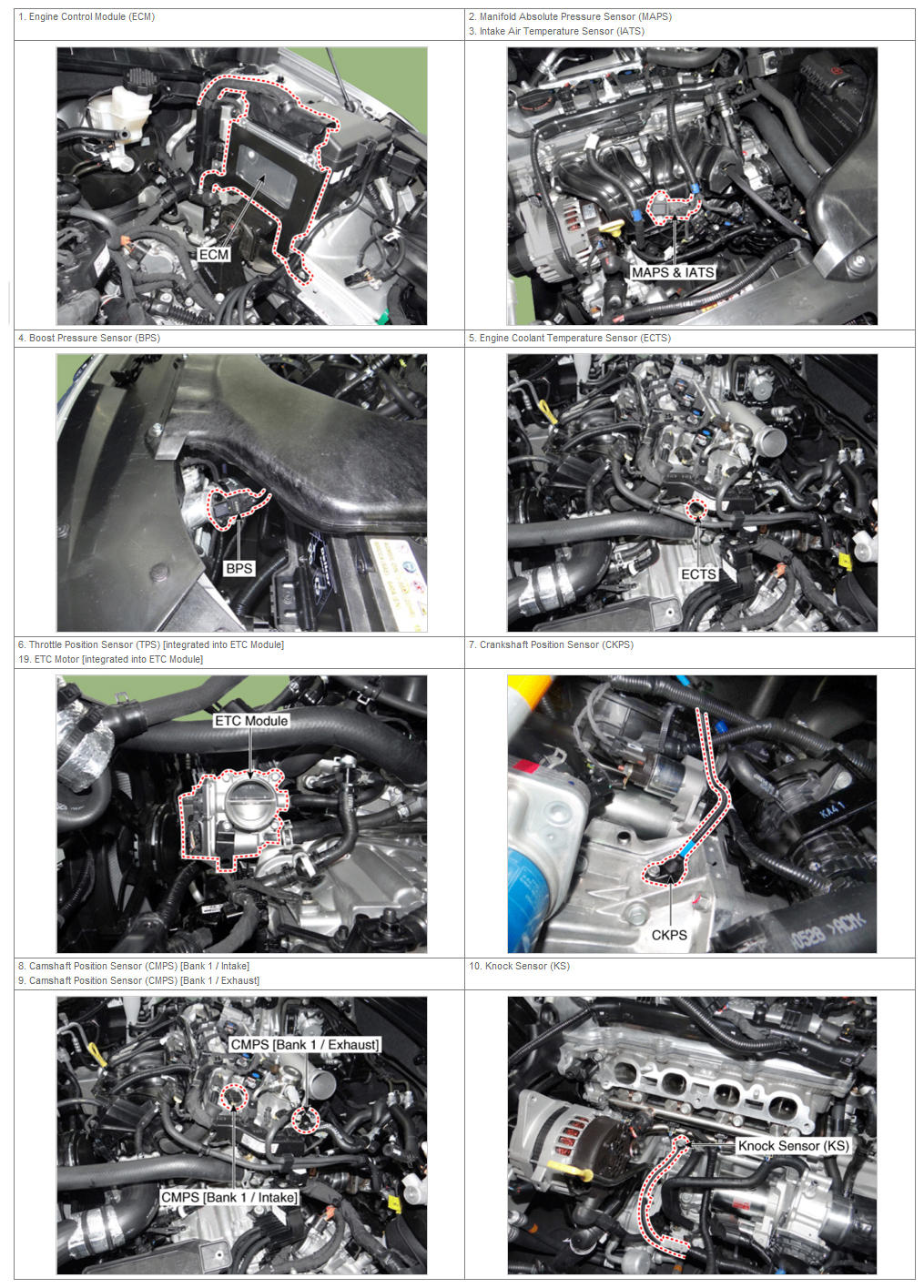

G12915351Courtesy of KIA MOTORS AMERICA, INC.
G12915352Courtesy of KIA MOTORS AMERICA, INC.

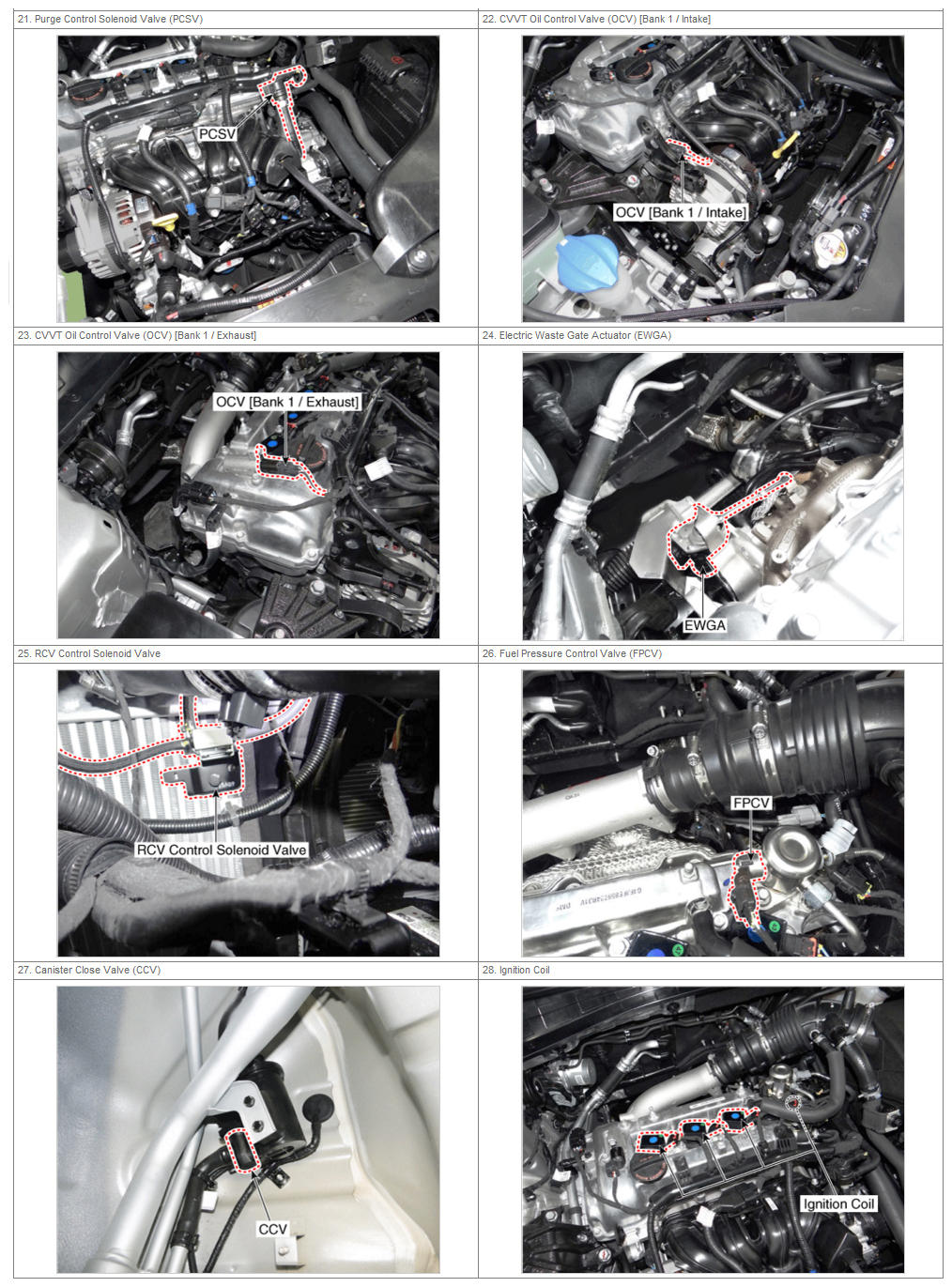

G12915353Courtesy of KIA MOTORS AMERICA, INC.

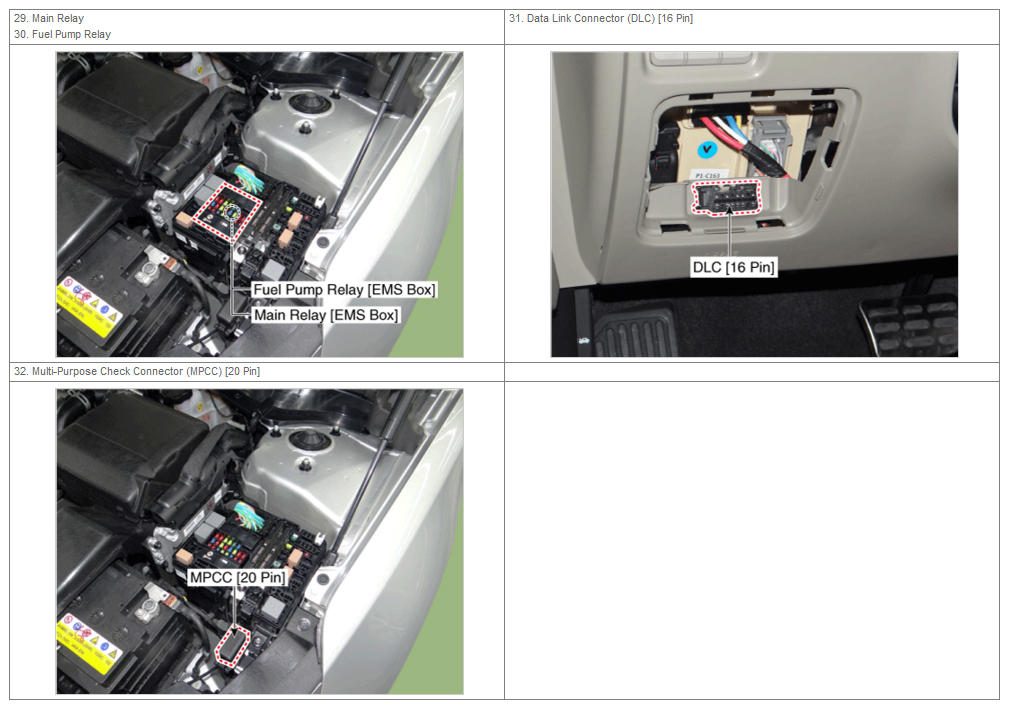

G12915354Courtesy of KIA MOTORS AMERICA, INC.
