Home >> Kia >> 2019 >> Optima Plug-In Hybrid EX, 2.0L Eng VIN F >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (PHEV) >> Components & Components Location >> Components Location

Components Location

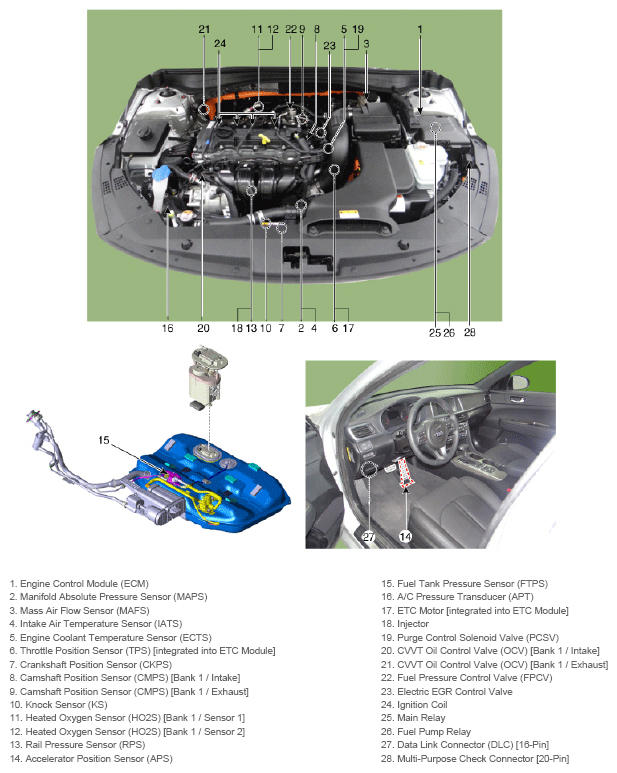

G13155673Courtesy of KIA MOTORS AMERICA, INC.

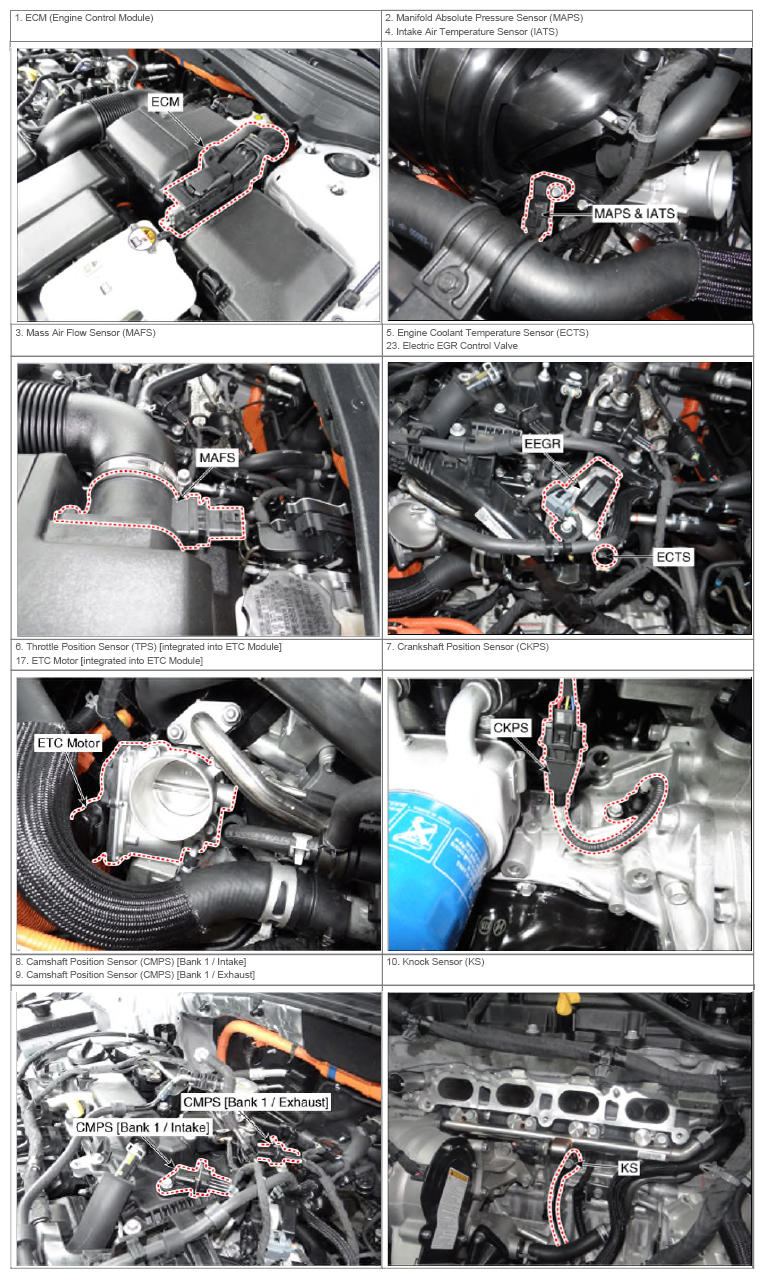

G13155674Courtesy of KIA MOTORS AMERICA, INC.

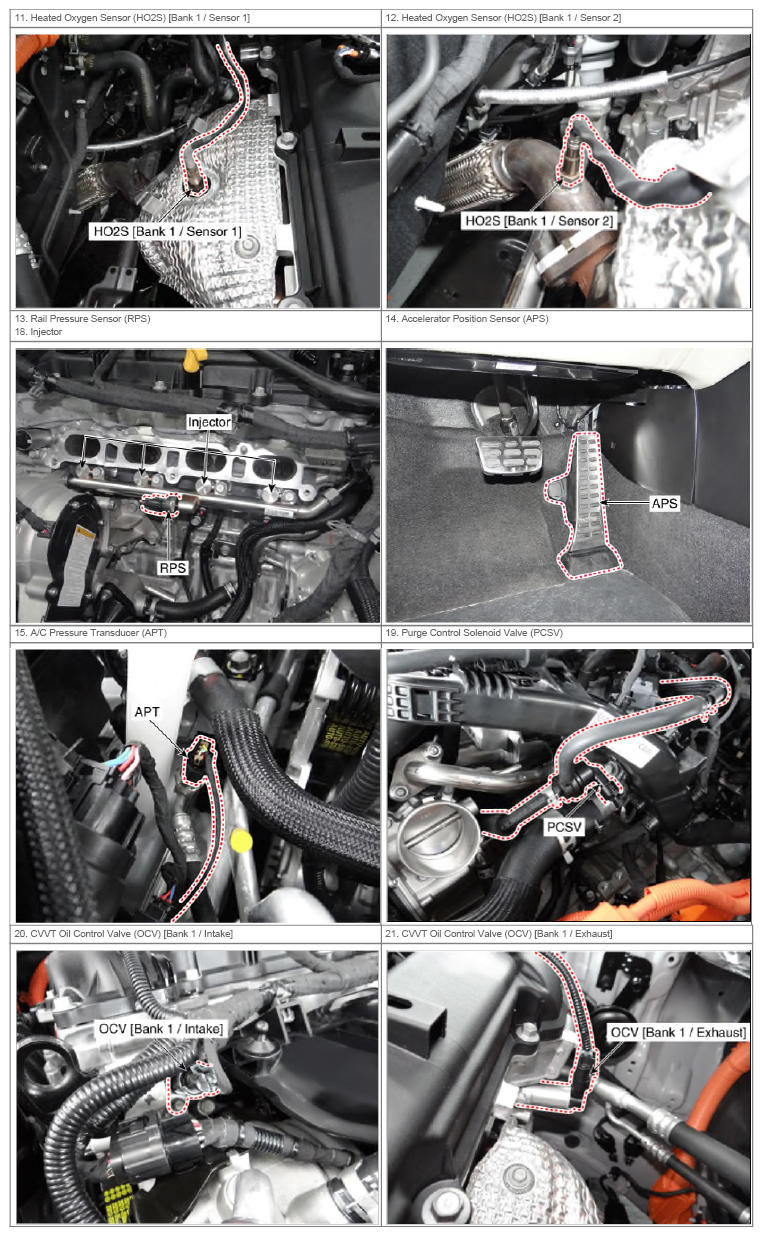

G13155675Courtesy of KIA MOTORS AMERICA, INC.

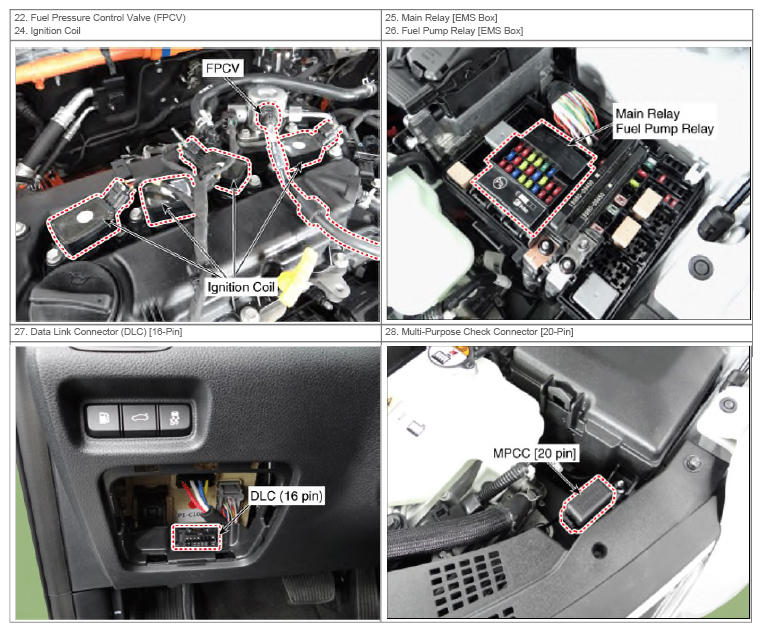

G13155676Courtesy of KIA MOTORS AMERICA, INC.
