Smart Key Status Check

  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.

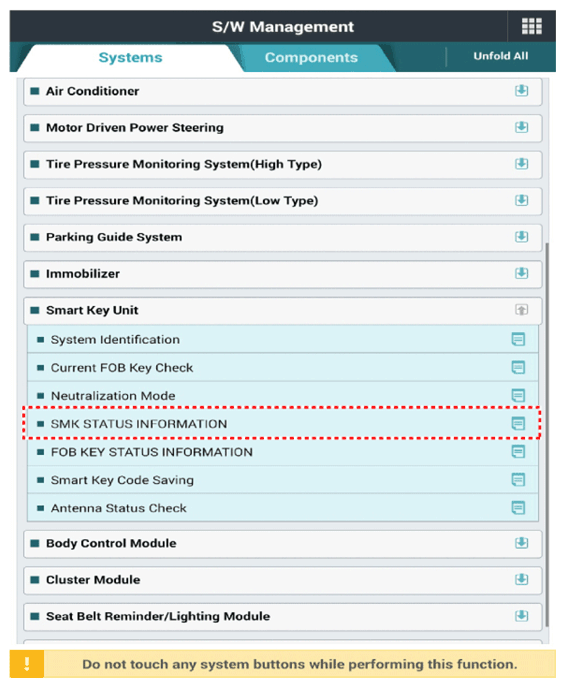

  2. After IG ON, select the "SMK STATUS INFO".
    G12580218Courtesy of KIA MOTORS AMERICA, INC.

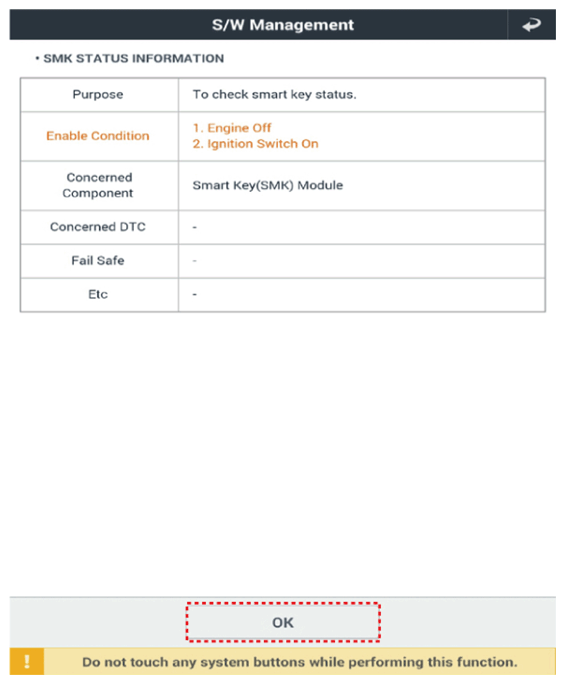

    G12580219Courtesy of KIA MOTORS AMERICA, INC.

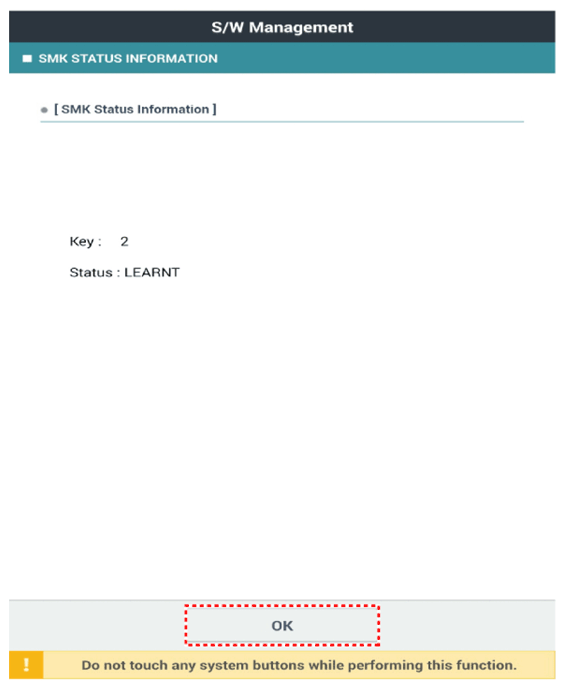

    G12580220Courtesy of KIA MOTORS AMERICA, INC.
