Repair Procedures: Disassembly

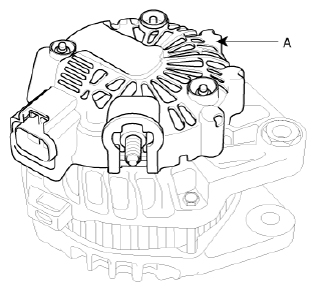

  1. Remove the rear cover (A) after removing nuts.
    G12576339Courtesy of KIA MOTORS AMERICA, INC.

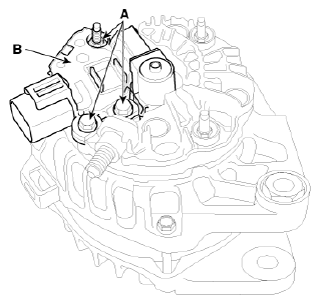

  2. Remove the mounting bolts (A) and the brush holder assembly (B).
    G12576340Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the slip ring guide (A) after pulling it.
    G12576341Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the OAP cap.
    NOTE:
    • When installing, replace with new OAP cap.

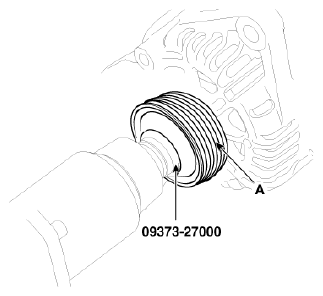

  5. Remove the OAP pulley (A) using the special tool.
    G12576342Courtesy of KIA MOTORS AMERICA, INC.
  6. Unsolder the 3 stator leads (A).
    G12576343Courtesy of KIA MOTORS AMERICA, INC.

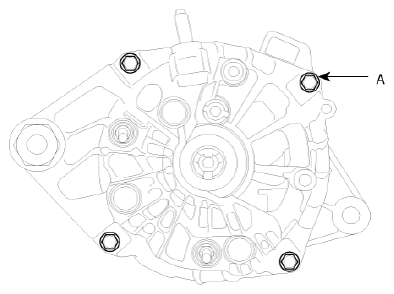

  7. Remove the 4 through bolts (A).
    G12576344Courtesy of KIA MOTORS AMERICA, INC.

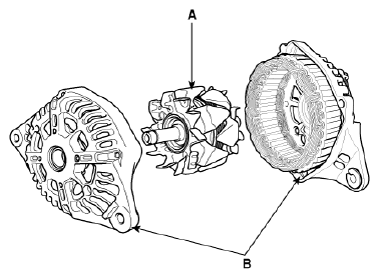

  8. Disconnect the rotor (A) and bracket (B).
    G12576345Courtesy of KIA MOTORS AMERICA, INC.
