Repair Procedures: Removal

  1. Turn the ignition switch OFF.

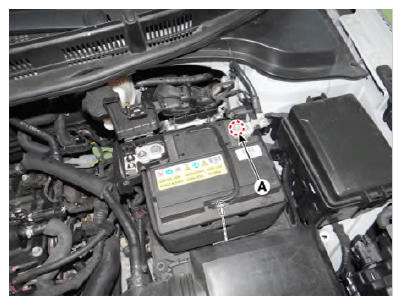

  2. Disconnect the battery negative (-) terminal (A).

    Battery negative (-) terminal tightening nut:

    8.0 - 10.0 N.m (0.8 - 10.0 kgf.m, 5.9 - 7.4 lb.ft)

    G12576366Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the battery sensor connector (A).
    G12576367Courtesy of KIA MOTORS AMERICA, INC.

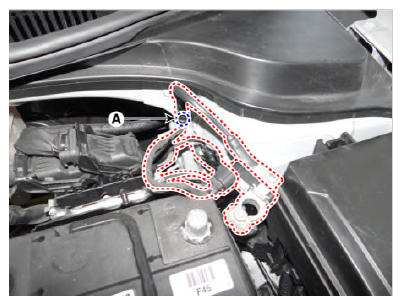

  4. Remove the battery sensor by loosening the mounting bolts (A).

    Battery sensor cable mounting bolt(Chassis ground):

    27.0 - 33.0 N.m (2.8 - 3.4 kgf.m, 19.9 - 24.3 lb.ft)

    G12576368Courtesy of KIA MOTORS AMERICA, INC.
