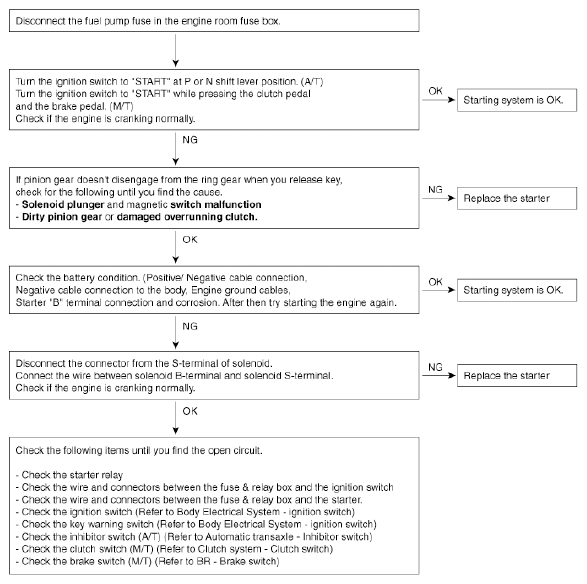

Engine Starting System: Troubleshooting

Symptom	Suspected Area	Remedy
Engine will not crank	Battery charge low	Charge or replace battery
	Battery cables loose, corroded or worn out	Repair or replace cables
	Inhibitor switch [AT Type only]	Refer to Automatic Transaxle System - " INHIBITOR SWITCH  "
	Fuse blown	Replace fuse
	Starter motor faulty	Replace
	Ignition switch faulty	Replace
Engine cranks slowly	Battery charge low	Charge or replace battery
	Battery cables loose, corroded or worn out	Repair or replace cables
	Starter motor faulty	Replace
Starter keeps running	Starter motor faulty	Replace
	Ignition switch	Replace
Starter spins but engine will not crank	Short in wiring	Repair or replace wiring
	Pinion gear teeth broken or starter motor	Replace
	Ring gear teeth broken	Replace fly wheel or torque converter

NOTE:

• The battery must be in good condition and fully charged for this troubleshooting.

Courtesy of KIA MOTORS AMERICA, INC.
