Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Disconnect the camshaft position sensor connector (A).
  3. Remove the installation bolt (B), and then remove the sensor.

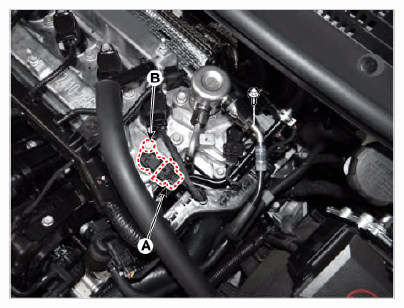

    [Bank 1 / Intake]

    G12576561Courtesy of KIA MOTORS AMERICA, INC.

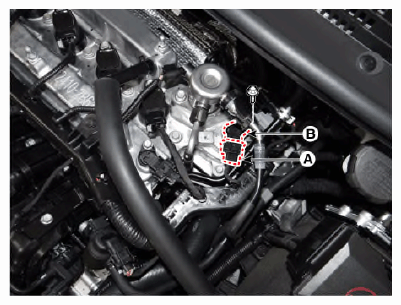

    [Bank 1 / Exhaust]

    G12576562Courtesy of KIA MOTORS AMERICA, INC.
