Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Lift the vehicle.

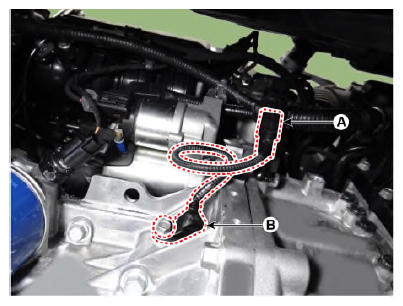

  3. Disconnect the crankshaft position sensor connector (A) and remove the sensor (B) after removing the installation bolt.
    G12576552Courtesy of KIA MOTORS AMERICA, INC.
