Home >> Kia >> 2019 >> Rio LX >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> Knock Sensor (KS) >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Lift the vehicle.
  3. Remove the engine room under cover.

    (Refer to Engine Mechanical System - " ENGINE ROOM UNDER COVER  ")

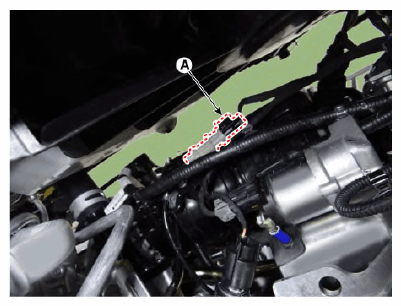

  4. Disconnect the knock sensor connector (A).
    G12576569Courtesy of KIA MOTORS AMERICA, INC.

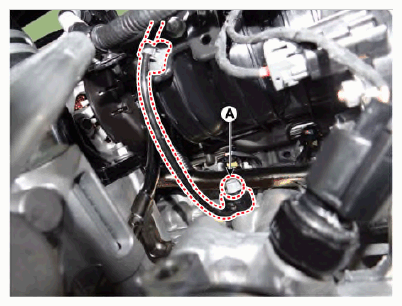

  5. Remove the mounting bolt (A), and then remove the sensor from the cylinder block.
    G12576570Courtesy of KIA MOTORS AMERICA, INC.
