Repair Procedures: Removal

  1. Shift the gear to "N".
  2. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - " AIR CLEANER  ")

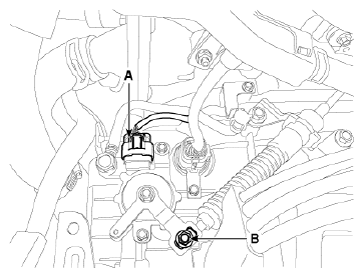

  3. Disconnect the inhibitor switch connector (A) and loosen the shift cable mounting nut (B).
    G12576924Courtesy of KIA MOTORS AMERICA, INC.

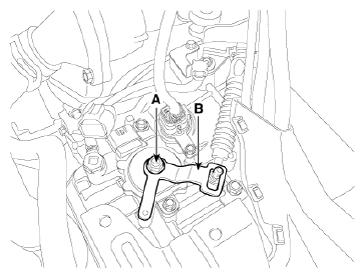

  4. Remove the manual control lever (B) and the washer after removing a nut (A).
    G12576925Courtesy of KIA MOTORS AMERICA, INC.

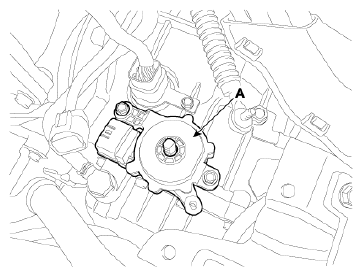

  5. Remove the inhibitor switch (A) after loosening the bolts.
    G12576926Courtesy of KIA MOTORS AMERICA, INC.
