Tailgate Lock Module Inspection

  1. Remove the tailgate trim.

    (Refer to "TAILGATE TRIM ")

  2. Disconnect the 4P connector from the actuator.
    G12821158Courtesy of KIA MOTORS AMERICA, INC.

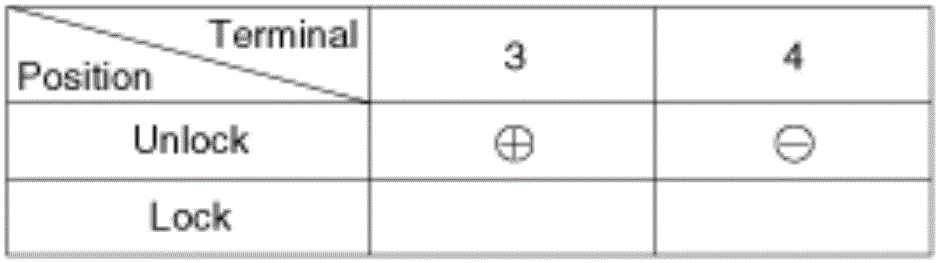

  3. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.
G12821159Courtesy of KIA MOTORS AMERICA, INC.
