Home >> Kia >> 2020 >> Cadenza Technology >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Smart Key System >> Smart Key Unit >> Repair Procedures >> Inspection >> Buzzer

Repair Procedures: Inspection: Buzzer

  1. Disconnect the negative battery terminal.
  2. Remove the front bumper assembly.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

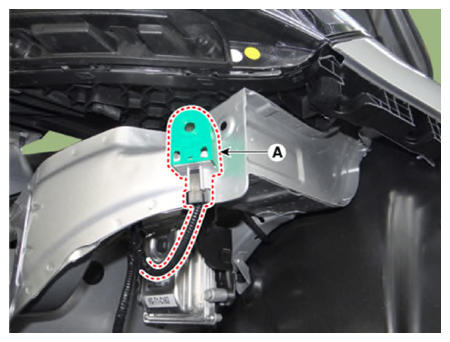

  3. Disconnect the buzzer connector (A).
    G13405565Courtesy of KIA MOTORS AMERICA, INC.
  4. Test the buzzer by connecting battery power to the terminal 2 and ground the terminal 1.
