Home >> Kia >> 2020 >> Cadenza Technology >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Smart Key System >> Smart Key Unit >> Repair Procedures >> Removal >> Buzzer

Repair Procedures: Removal: Buzzer

  1. Disconnect the negative battery terminal.
  2. Remove the front bumper assembly.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

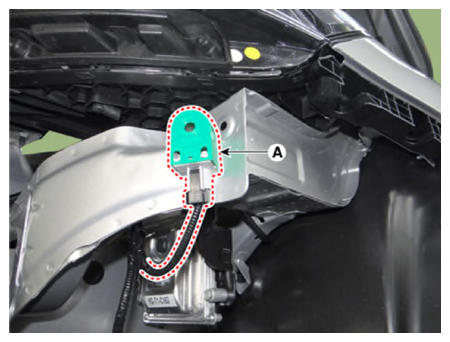

  3. Remove the buzzer (A) after disconnecting the connector.
    G13405562Courtesy of KIA MOTORS AMERICA, INC.
